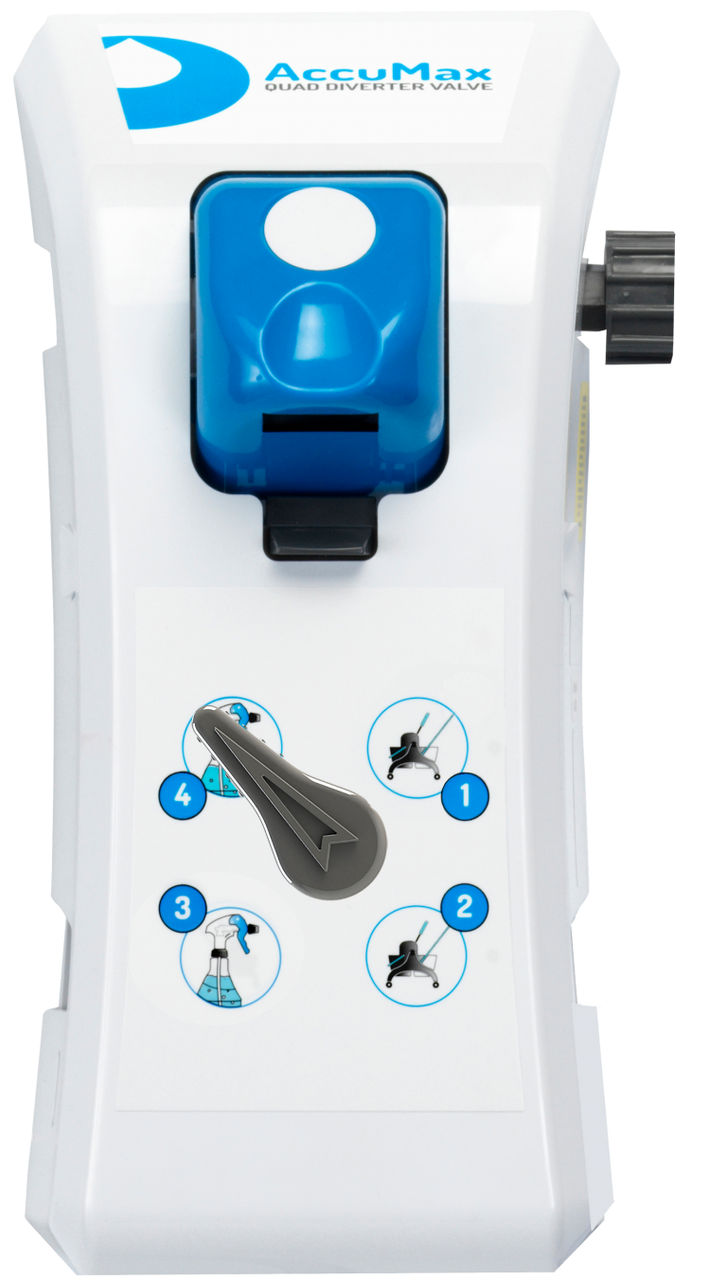

AccuMax QDV
Venturi Dispenser, wall mounted on small footprint, Up to 4 Chemistries w/ 1 Dispenser
AccuMax QDV offers a unique way to dispense a wide variety of automatically diluted solutions into spray bottles, buckets and other containers, while eliminating the possibility of chemical carryover between products. The system uses patented quad diverter valve technology to channel incoming water to the proper eductor, which meters the appropriate amount of chemical into the water stream.
Available in NA only
Applications
Filling Mop Buckets Filling Spray Bottels Filling Sinks Surface Cleaning
Features patented AccuPro Pressure Regulation Technology That Reduces Chemical Consumption by 20%
Allows end user to dilute up to four different chemicals with the same device. Reduction in total cost of ownership by up to 15%.
Allows for use in all locations in North America regardless of local water regulation requirements

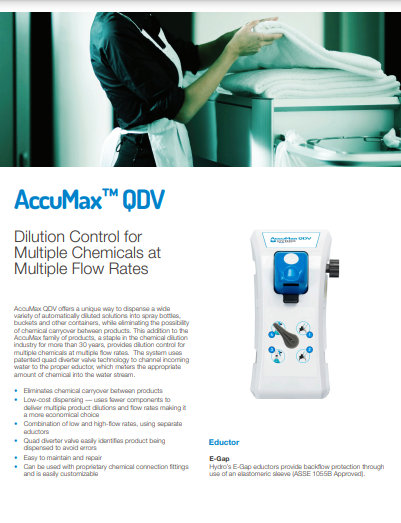

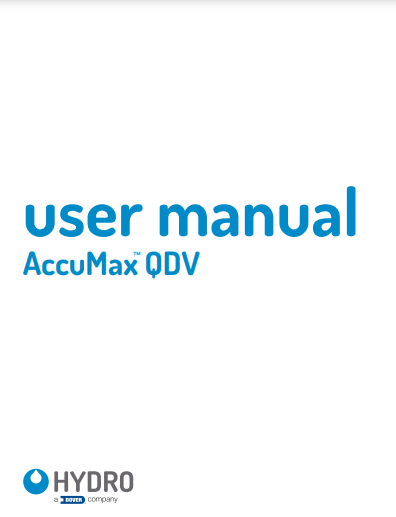

Accumax QDV Resources
Everything you need all in one place
Accuracy matters
Hydro Systems’ patented AccuPro Pressure Regulation Technology comes standard with the 4 product dispenser. AccuPro Technology eliminates dilution variance to ensure your customers are always using the recommended amount of chemical. Facilities are cleaner and safer when chemicals are working properly.
Dilution of multiple chemicals at multiple flow rates with the same equipment reduces ownership costs
By using fewer components to deliver multiple product dilutions and flow rates in the same equipment makes the QDV dispenser an economical choice. Quad diverter valve technology easily identifies product being dispensed to avoid errors.
Helps meet local water regulations
Hydro's QDV equipment comes standard with E-Gap eductor backflow prevention
| MODEL | NUMBER OF EDUCTORS | |
| 35241 | 4 Low | 0 High |
| 35221 | 2 Low | 2 High |
| 35231 | 3 Low | 1 High |

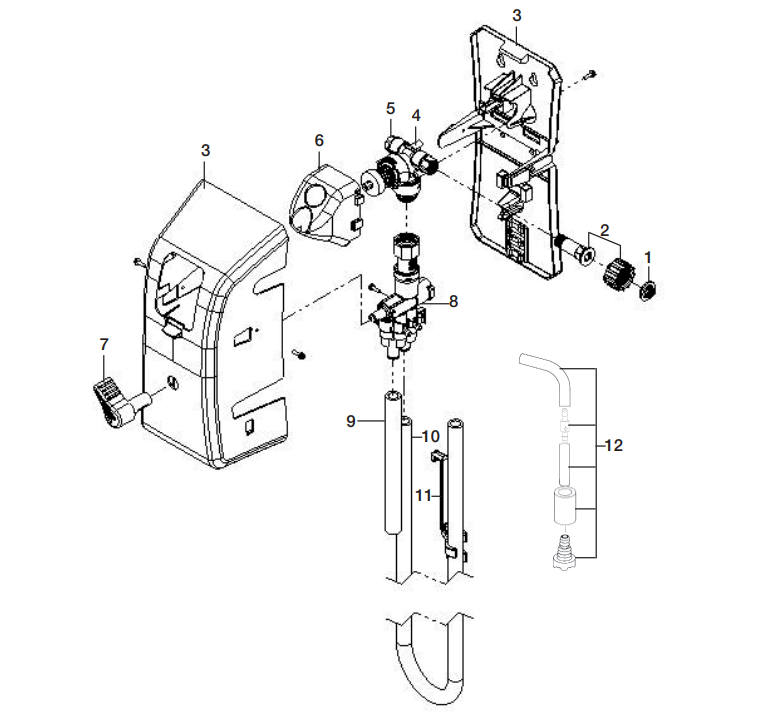

| Key | Part No. | Description |
| 1 | HYD238100 | Strainer washer |
| 2 | HYD90096436 | Kit, Water inlet |
| 3 | HYD10098831 | Kit, Cabinet Replacement 3L 1H |
| HYD10098832 | Kit, Cabinet Replacement 2L 2H | |
| HYD10098833 | Kit, Cabinet Replacement 4L | |
| 4 | HYD10098574 | Kit, ASM water valve, spring, magnet |
| HYD10075980 | Kit, water valve parts | |
| 5 | HYD10098573 | Kit,Pipe plug & o-ring |
| 6 | HYD10098822 | Kit, Button replacement |
| 7 | HYD10098827 | Kit, selector replacement |
| 8 | QDV,3low1 | |
| QDV,2low2high | ||
| QDV,4low | ||
| 9 | HYD505808 | Tube, 1/2“ x 8“ |
| 10 | HYD505806 | Tube, 1/2“ x 6‘ |
| 11 | HYD10080730 | Hose hook, dark gray |
| 12 | HYD10098834 | Kit, QDV single pick-up assembly |
No files found.
Accuracy matters
Hydro Systems’ patented AccuPro Pressure Regulation Technology comes standard with the 4 product dispenser. AccuPro Technology eliminates dilution variance to ensure your customers are always using the recommended amount of chemical. Facilities are cleaner and safer when chemicals are working properly.
Dilution of multiple chemicals at multiple flow rates with the same equipment reduces ownership costs
By using fewer components to deliver multiple product dilutions and flow rates in the same equipment makes the QDV dispenser an economical choice. Quad diverter valve technology easily identifies product being dispensed to avoid errors.
Helps meet local water regulations
Hydro's QDV equipment comes standard with E-Gap eductor backflow prevention
| MODEL | NUMBER OF EDUCTORS | |
| 35241 | 4 Low | 0 High |
| 35221 | 2 Low | 2 High |
| 35231 | 3 Low | 1 High |
| Key | Part No. | Description |
| 1 | HYD238100 | Strainer washer |
| 2 | HYD90096436 | Kit, Water inlet |
| 3 | HYD10098831 | Kit, Cabinet Replacement 3L 1H |
| HYD10098832 | Kit, Cabinet Replacement 2L 2H | |
| HYD10098833 | Kit, Cabinet Replacement 4L | |
| 4 | HYD10098574 | Kit, ASM water valve, spring, magnet |
| HYD10075980 | Kit, water valve parts | |
| 5 | HYD10098573 | Kit,Pipe plug & o-ring |
| 6 | HYD10098822 | Kit, Button replacement |
| 7 | HYD10098827 | Kit, selector replacement |
| 8 | QDV,3low1 | |
| QDV,2low2high | ||
| QDV,4low | ||
| 9 | HYD505808 | Tube, 1/2“ x 8“ |
| 10 | HYD505806 | Tube, 1/2“ x 6‘ |
| 11 | HYD10080730 | Hose hook, dark gray |
| 12 | HYD10098834 | Kit, QDV single pick-up assembly |
No files found.
Ready to get started?
Our experts are here to help. Tell us more about what you need
so we can connect you to the right Hydro experts.
Common Questions
Have a different question? Reach Out
Water enters the system at varying pressures. Water pressure is regulated at the eductor by the Accupro technology. The regulated water pressure creates a vacuum that draws chemical at the recommended rate that provides for a consistent and expected dilution.
Yes, units are available with eductors that feature different flow rates necessary for different applications.
Yes, please contact the Hydro team to review button color options that are available based on a minimum order quantity. Example button colors are dark blue and dark grey.
Just E-Gap.
Please check the locator associated with the Hydro website.
