AccuMax

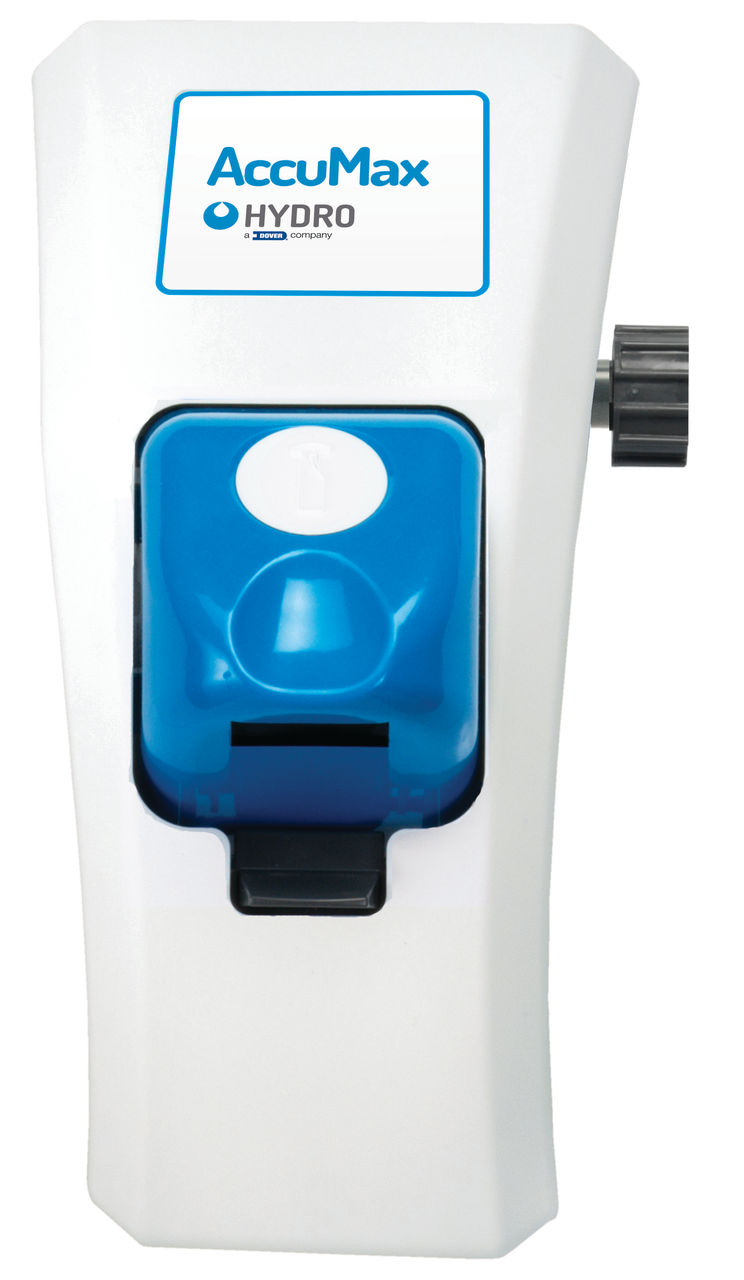

Venturi Dispenser, wall mounted, Up to 8 Chemistries w/ 1 Dispenser
The AccuMax line of chemical dispensers combine more than thirty years of industry expertise and all the best features Hydro Systems has to offer. The AccuMax is versatile and durable, featuring patented AccuPro technology for dilution control. Equipment options with multiple buttons are available.
Applications
Filling Mop Buckets Filling Spray Bottels Filling Sinks Surface Cleaning
Features patented AccuPro pressure regulation technology that reduces chemical consumption by 20%
Multiple button configurations allow for the multiple chemistries to be used reducing the total cost of ownership by up to 25%
Allows for use in all locations in North America regardless of local water regulation requirements
AccuMax Resources
Everything you need all in one place
1) Accuracy matters
Hydro Systems’ patented AccuPro Pressure Regulation Technology comes standard with AccuMax. AccuPro Technology eliminates dilution variance to ensure your customers are always using the recommended amount of chemical. Facilities are cleaner and safer when chemicals are working properly.
2) Multiple button configurations allow for multiple chemistries to be used with the same dispenser
AccuMax features a dispenser that can handle up to three different chemistries. Instead of purchasing multiple dispensers to handle multiple chemistries, you can purchase one AccuMax dispenser and reduce your cost of ownership by up to 25%.
3) Helps meet local water regulations
Hydro's AccuMax equipment comes standard with E-Gap or Air Gap eductor backflow prevention
| MODEL | DESCRIPTION | 1ST BUTTON | 2nd BUTTON | 3rd BUTTON |
| 35301 3530AG | 1B E-Gap 1B AirGap | Lo | N/A | N/A |
| 35331 3533AG | 1B E-Gap 1B AirGap | Hi | N/A | N/A |
| 35411 3541AG | 2B E-Gap 2B AirGap | Lo | Lo | N/A |
| 35441 3544AG | 2B E-Gap 2B AirGap | Hi | Hi | N/A |
| 35501 3550AG | 3B E-Gap 3B AirGap | Lo | Hi | N/A |
| 35531 3553AG | 3B E-Gap 3B AirGap | Lo | Lo | Lo |
| 35531 3553AG | 3B E-Gap 3B AirGap | Hi | Hi | Hi |
| 35561 3556AG | AirGap3B E-Gap 3B AirGap | Lo | Hi | Hi |
| 35581 3558AG | 3B E-Gap 3B AirGap | Lo | Lo | Hi |
| 35761 3576AG | Select Plus E-Gap Select Plus AirGap | Select Lo | Hi | N/A |
| 35771 3577AG | Dual Select Lo/Hi E-Gap Dual Select Lo/Hi Airgap | Select Lo | Select Hi | N/A |

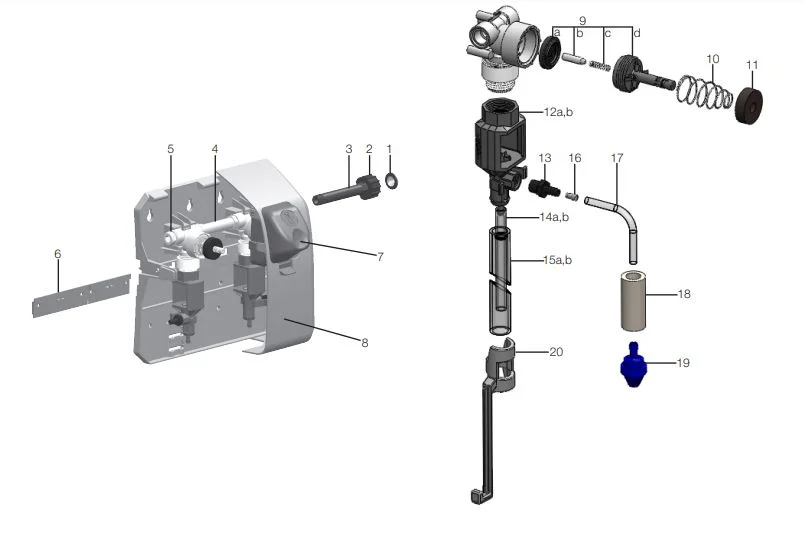

| Key | Part No. | Description |
| 1 | 238100 | Strainer washer |
| 2 | 10082830 | Swivel collar (molded) |
| 3 | 10082802 | Swivel stm 1 button (molded) |
| 10082811 | Swivel stem 2 button (molded) | |
| 4 | 10075902 10075903 10075950 | Nipple, plastic 3/8“ (2 button models) Nipple, plastic 3/8“ (3 button models) O-ring (two required per nipple) |
| 5 | 10098573 | Kit, Pipe plug & o-ring |
| 6 | 10091035 | Wall bracket |
| 7 | 10098821 10098824 | Button, Low flow, process blue Button, High flow, process blue |
| 8 | 10098539 10098541 10098836 | Cabinet set, 1 button unit Cabinet set, 2 button unit Cabinet set, 3 button unit |
| 9 | 10075980 | Valve parts kit a. diaphragm, b. armature c. spring, d. valve bonnet |
| 10 | 10079010 | Spring |
| 11 | 10079000 | Magnet |
| 12a b | 160 161 | 1.0 GPM eductor assembly 3.5 GPM eductor assembly |
| 13 | 3401-R | Hose barb assembly* included in edcutor assemblies |
| 14a 14b | 10070170 10070470 | 1 GPM inner discharge tube 3.5 GPM inner discharge tube |
| 15a 15b | 10064794 10077310 | 1 GPM outer discharge tube (7”) 3.5 GPM outer discharge tube (4’) |
| 16 | 690014 | Metering tip kit |
| 17 | 500870 | Tubing 1/4“ x 7‘ |
| 18 | 509900 | Weight |
| 19 | 10089410 | Footvalve -Viton (EPDM also available. Order 10076302) |
| 20 | 10080720 | Hose hook dark grey (standard) |
| Not Shown: 641751 | Security screws (for cabinet sides) |

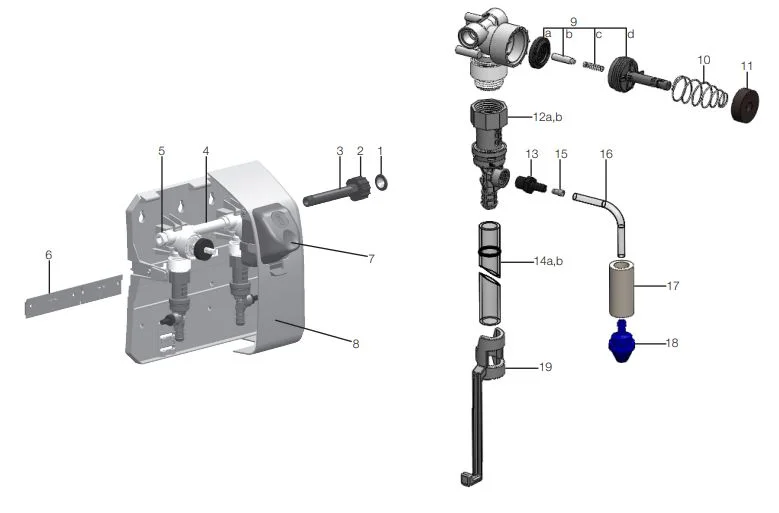

| Key | Part No. | Description |
| 1 | 238100 | Strainer washer |
| 2 | 10082830 | Swivel collar (molded) |
| 3 | 10082802 | Swivel stm 1 button (molded) |
| 10082811 | Swivel stem 2 button (molded) | |
| 4 | 10075902 10075903 10075950 | Nipple, plastic 3/8“ (2 button models) Nipple, plastic 3/8“ (3 button models) O-ring (two required per nipple) |
| 5 | 10098573 | Kit, Pipe plug & o-ring |
| 6 | 10091035 | Wall bracket |
| 7 | 10098821 10098824 | Button, Low flow, process blue Button, High flow, process blue |
| 8 | 10098539 10098541 10098836 | Cabinet set, 1 button unit Cabinet set, 2 button unit Cabinet set, 3 button unit |
| 9 | 10075980 | Valve parts kit a. diaphragm b. armature c. spring d. valve bonnet |
| 10 | 10079010 | Spring |
| 11 | 10079000 | Magnet |
| 12a b | 290 291 | 1.0 GPM eductor assembly 3.5 GPM eductor assembly |
| 13 | 3401-R | Hose barb assembly* included in eductor assemblies |
| 14a 14b | 10088822 90048495 | 1 GPM discharge tube with flooding ring (8“) 3.5 GPM discharge tube with flooding ring (4‘) |
| 15 | 690014 | Metering tip kit |
| 16 | 500870 | Tubing 1/4“ x 7‘ |
| 17 | 509900 | Weight |
| 18 | 10089410 | Footvalve -Viton (EPDM also available. Order 10076302) |
| 19 | 10080730 | Hose hook dark gray (standard) |
| Not Shown: 641751 | Security screws (for cabinet sides) |

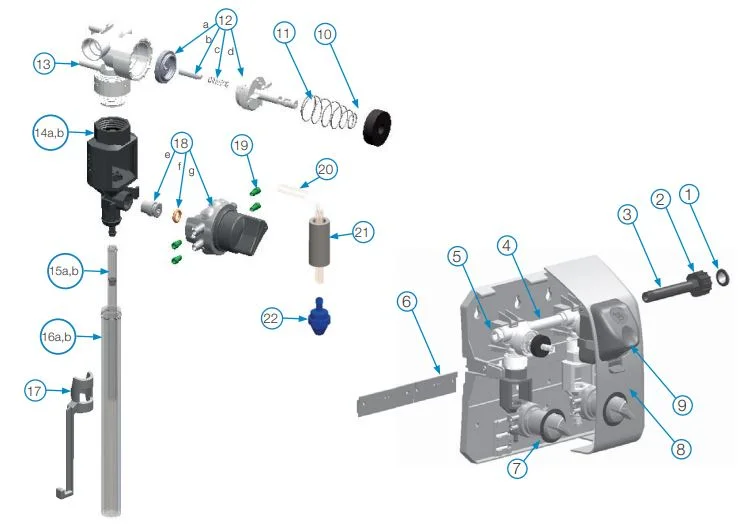

| Key | Part No. | Description |
| 1 | HYD238100 | Strainer washer |
| 2 | HYD10082830 | Swivel collar (molded) |
| 3 | HYD10082811 | Swivel stem (molded) |
| 4 | HYD10075902 HYD10075950 | Nipple, plastic 3/8“ (2 btn models) O-ring (two required per nipple) |
| 5 | HYD10098573 | Kit, Pipe plug & o-ring |
| 6 | HYD10091035 | Wall bracket |
| 7 | HYD10020700 HYD10020900 | Selector valve grommet Back up ring for grommet |
| 8 | HYD10098545 | Cabinet 2 button dual select |
| 9 | HYD10098821 HYD10098824 | Button, Bottle fill, process blue Button, Bucket fill, process blue |
| 10 | HYD10079000 | Magnet |
| 11 | HYD10079010 | Spring |
| 12 | HYD10075980 | Valve parts kit a. diaphragm, b. armature c. spring, d. valve bonnet |
| 13 | HYD10075995 | Water valve |
14a b | HYD160 HYD161 | 1.0 GPM eductor assembly 3.5 GPM edcutor assembly |
15a b | HYD10070170 HYD10070470 | 1.0 GPM inner discharge tube 3.5 GPM inner discharge tube |
| 16a b | HYD10064794 HYD10077310 | 1.0 GPM outer discharge tube 3.5 GPM outer discharge tube |
| 17 | HYD10080720 | Hose hook dark grey (standard) for 3.5 GPM discharge tube |
| 18 | HYD10080955 | Selector replacement kit: e. Suction stub, f. O-ring, g. selector valve assembly |
| 19 | HYD690014 | Metering tip kit |
| 20 | HYD500814 HYD500821 | Tubing 1/4“ x 14‘ Tubing 1/4“ x 21‘ |
| 21 | HYD509900 | Weight |
| 22 | HYD10089410 | Footvalve -Viton (EPDM also available. Order 10076302) |
| Not Shown: HYD641751 | Security screws (for cabinet sides) |
| Key | Part No. | Description |
| 1 | HYD238100 | Strainer washer |
| 2 | HYD10082830 | Swivel collar (molded) |
| 3 | HYD10082811 | Swivel stem (molded) |
| 4 | HYD10075902 HYD10075950 | Nipple, plastic 3/8“ (2 btn models) O-ring (two required per nipple) |
| 5 | HYD10098573 | Kit, Pipe plug & o-ring |
| 6 | HYD10091035 | Wall bracket |
| 7 | HYD10020700 HYD10020900 | Selector valve grommet Back up ring for grommet |
| 8 | HYD10098545 | Cabinet 2 button dual select + 1 |
| 9 | HYD10098821 HYD10098824 | Button, Bottle fill, process blue Button, Bucket fill, process blue |
| 10 | HYD10079000 | Magnet |
| 11 | HYD10079010 | Spring |
| 12 | HYD10075980 | Valve parts kit a. diaphragm, b. armature c. spring, d. valve bonnet |
| 13 | HYD10075995 | Water valve |
14a b | HYD290 HYD291 | 1.0 GPM eductor assembly 3.5 GPM edcutor assembly |
15a b | HYD10088822 HYD90048495 | 1.0 GPM discharge tube with flooding ring (8“) 3.5 GPM discharge tube with flooding ring (4‘) |
| 16 | HYD10080956 | Selector replacement kit: e. support clip, f. Suction stub g. O-ring, h. selector valve assembly |
| 17 | HYD690014 | Metering tip kit |
| 18 | HYD3401-R | Hosebarb |
| 19 | HYD500814 HYD500821 | Tubing 1/4“ x 14‘ Tubing 1/4“ x 21‘ |
| 20 | HYD509900 | Weight |
| 21 | HYD10089410 | Footvalve -Viton (EPDM also available. Order 10076302) |
| 22 | HYD10080730 | Hose hook dark grey (standard) for 3.5 GPM discharge tube |
| Not Shown: HYD641751 | Security screws (for cabinet sides) |

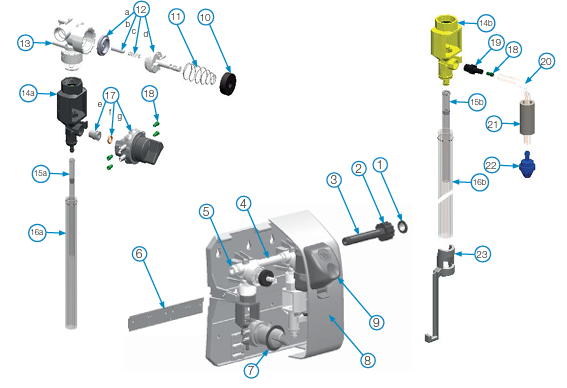

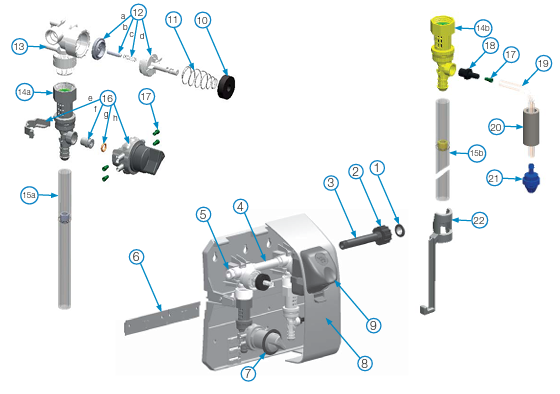

| Key | Part No. | Description |
| 1 | HYD238100 | Strainer washer |
| 2 | HYD10082830 | Swivel collar (molded) |
| 3 | HYD10082811 | Swivel stem (molded) |
| 4 | HYD10075902 HYD10075950 | Nipple, plastic 3/8“ (2 btn models) O-ring (two required per nipple) |
| 5 | HYD10098573 | Kit, Pipe plug & o-ring |
| 6 | HYD10091035 | Wall bracket |
| 7 | HYD10020700 HYD10020900 | Selector valve grommet Back up ring for grommet |
| 8 | HYD10098544 | Cabinet 2 button dual select + 1 |
| 9 | HYD10098821 HYD10098824 | Button, Bottle fill, process blue Button, Bucket fill, process blue |
| 10 | HYD10079000 | Magnet |
| 11 | HYD10079010 | Spring |
| 12 | HYD10075980 | Valve parts kit a. diaphragm, b. armature c. spring, d. valve bonnet |
| 13 | HYD10075995 | Water valve |
14a b | HYD160 HYD161 | 1.0 GPM eductor assembly 3.5 GPM edcutor assembly |
15a b | HYD10070170 HYD10070470 | 1.0 GPM inner discharge tube 3.5 GPM inner discharge tube |
| 16a b | HYD10064794 HYD10077310 | 1.0 GPM outer discharge tube 3.5 GPM outer discharge tube |
| 18 | HYD10080955 | Selector replacement kit: e. Suction stub, f. O-ring, g. selector valve assembly |
| 19 | HYD690014 | Metering tip kit |
| 20 | HYD500814 HYD500821 | Tubing 1/4“ x 14‘ Tubing 1/4“ x 21‘ |
| 21 | HYD509900 | Weight |
| 22 | HYD10089410 | Footvalve -Viton (EPDM also available. Order 10076302) |
| 23 | HYD10080720 | Hose hook dark grey (standard) for 3.5 GPM discharge tube |
| Not Shown: HYD641751 | Security screws (for cabinet sides) |
| Key | Part No. | Description |
| 1 | HYD238100 | Strainer washer |
| 2 | HYD10082830 | Swivel collar (molded) |
| 3 | HYD10082811 | Swivel stem (molded) |
| 4 | HYD10075902 HYD10075950 | Nipple, plastic 3/8“ (2 btn models) O-ring (two required per nipple) |
| 5 | HYD10098573 | Kit, Pipe plug & o-ring |
| 6 | HYD10091035 | Wall bracket |
| 7 | HYD10020700 HYD10020900 | Selector valve grommet Back up ring for grommet |
| 8 | HYD10098544 | Cabinet 2 button dual select + 1 |
| 9 | HYD10098821 HYD10098824 | Button, Bottle fill, process blue Button, Bucket fill, process blue |
| 10 | HYD10079000 | Magnet |
| 11 | HYD10079010 | Spring |
| 12 | HYD10075980 | Valve parts kit a. diaphragm, b. armature c. spring, d. valve bonnet |
| 13 | HYD10075995 | Water valve |
14a b | HYD160 HYD161 | 1.0 GPM eductor assembly 3.5 GPM edcutor assembly |
15a b | HYD10070170 HYD10070470 | 1.0 GPM inner discharge tube 3.5 GPM inner discharge tube |
| 16a b | HYD10064794 HYD10077310 | 1.0 GPM outer discharge tube 3.5 GPM outer discharge tube |
| 18 | HYD10080955 | Selector replacement kit: e. Suction stub, f. O-ring, g. selector valve assembly |
| 19 | HYD690014 | Metering tip kit |
| 20 | HYD500814 HYD500821 | Tubing 1/4“ x 14‘ Tubing 1/4“ x 21‘ |
| 21 | HYD509900 | Weight |
| 22 | HYD10089410 | Footvalve -Viton (EPDM also available. Order 10076302) |
| 23 | HYD10080720 | Hose hook dark grey (standard) for 3.5 GPM discharge tube |
| Not Shown: HYD641751 | Security screws (for cabinet sides) |
AccuMax: The Next Generation of Chemical Dispensing
1) Accuracy matters
Hydro Systems’ patented AccuPro Pressure Regulation Technology comes standard with AccuMax. AccuPro Technology eliminates dilution variance to ensure your customers are always using the recommended amount of chemical. Facilities are cleaner and safer when chemicals are working properly.
2) Multiple button configurations allow for multiple chemistries to be used with the same dispenser
AccuMax features a dispenser that can handle up to three different chemistries. Instead of purchasing multiple dispensers to handle multiple chemistries, you can purchase one AccuMax dispenser and reduce your cost of ownership by up to 25%.
3) Helps meet local water regulations
Hydro's AccuMax equipment comes standard with E-Gap or Air Gap eductor backflow prevention
| MODEL | DESCRIPTION | 1ST BUTTON | 2nd BUTTON | 3rd BUTTON |
| 35301 3530AG | 1B E-Gap 1B AirGap | Lo | N/A | N/A |
| 35331 3533AG | 1B E-Gap 1B AirGap | Hi | N/A | N/A |
| 35411 3541AG | 2B E-Gap 2B AirGap | Lo | Lo | N/A |
| 35441 3544AG | 2B E-Gap 2B AirGap | Hi | Hi | N/A |
| 35501 3550AG | 3B E-Gap 3B AirGap | Lo | Hi | N/A |
| 35531 3553AG | 3B E-Gap 3B AirGap | Lo | Lo | Lo |
| 35531 3553AG | 3B E-Gap 3B AirGap | Hi | Hi | Hi |
| 35561 3556AG | AirGap3B E-Gap 3B AirGap | Lo | Hi | Hi |
| 35581 3558AG | 3B E-Gap 3B AirGap | Lo | Lo | Hi |
| 35761 3576AG | Select Plus E-Gap Select Plus AirGap | Select Lo | Hi | N/A |
| 35771 3577AG | Dual Select Lo/Hi E-Gap Dual Select Lo/Hi Airgap | Select Lo | Select Hi | N/A |
| Key | Part No. | Description |
| 1 | 238100 | Strainer washer |
| 2 | 10082830 | Swivel collar (molded) |
| 3 | 10082802 | Swivel stm 1 button (molded) |
| 10082811 | Swivel stem 2 button (molded) | |
| 4 | 10075902 10075903 10075950 | Nipple, plastic 3/8“ (2 button models) Nipple, plastic 3/8“ (3 button models) O-ring (two required per nipple) |
| 5 | 10098573 | Kit, Pipe plug & o-ring |
| 6 | 10091035 | Wall bracket |
| 7 | 10098821 10098824 | Button, Low flow, process blue Button, High flow, process blue |
| 8 | 10098539 10098541 10098836 | Cabinet set, 1 button unit Cabinet set, 2 button unit Cabinet set, 3 button unit |
| 9 | 10075980 | Valve parts kit a. diaphragm, b. armature c. spring, d. valve bonnet |
| 10 | 10079010 | Spring |
| 11 | 10079000 | Magnet |
| 12a b | 160 161 | 1.0 GPM eductor assembly 3.5 GPM eductor assembly |
| 13 | 3401-R | Hose barb assembly* included in edcutor assemblies |
| 14a 14b | 10070170 10070470 | 1 GPM inner discharge tube 3.5 GPM inner discharge tube |
| 15a 15b | 10064794 10077310 | 1 GPM outer discharge tube (7”) 3.5 GPM outer discharge tube (4’) |
| 16 | 690014 | Metering tip kit |
| 17 | 500870 | Tubing 1/4“ x 7‘ |
| 18 | 509900 | Weight |
| 19 | 10089410 | Footvalve -Viton (EPDM also available. Order 10076302) |
| 20 | 10080720 | Hose hook dark grey (standard) |
| Not Shown: 641751 | Security screws (for cabinet sides) |
| Key | Part No. | Description |
| 1 | 238100 | Strainer washer |
| 2 | 10082830 | Swivel collar (molded) |
| 3 | 10082802 | Swivel stm 1 button (molded) |
| 10082811 | Swivel stem 2 button (molded) | |
| 4 | 10075902 10075903 10075950 | Nipple, plastic 3/8“ (2 button models) Nipple, plastic 3/8“ (3 button models) O-ring (two required per nipple) |
| 5 | 10098573 | Kit, Pipe plug & o-ring |
| 6 | 10091035 | Wall bracket |
| 7 | 10098821 10098824 | Button, Low flow, process blue Button, High flow, process blue |
| 8 | 10098539 10098541 10098836 | Cabinet set, 1 button unit Cabinet set, 2 button unit Cabinet set, 3 button unit |
| 9 | 10075980 | Valve parts kit a. diaphragm b. armature c. spring d. valve bonnet |
| 10 | 10079010 | Spring |
| 11 | 10079000 | Magnet |
| 12a b | 290 291 | 1.0 GPM eductor assembly 3.5 GPM eductor assembly |
| 13 | 3401-R | Hose barb assembly* included in eductor assemblies |
| 14a 14b | 10088822 90048495 | 1 GPM discharge tube with flooding ring (8“) 3.5 GPM discharge tube with flooding ring (4‘) |
| 15 | 690014 | Metering tip kit |
| 16 | 500870 | Tubing 1/4“ x 7‘ |
| 17 | 509900 | Weight |
| 18 | 10089410 | Footvalve -Viton (EPDM also available. Order 10076302) |
| 19 | 10080730 | Hose hook dark gray (standard) |
| Not Shown: 641751 | Security screws (for cabinet sides) |
| Key | Part No. | Description |
| 1 | HYD238100 | Strainer washer |
| 2 | HYD10082830 | Swivel collar (molded) |
| 3 | HYD10082811 | Swivel stem (molded) |
| 4 | HYD10075902 HYD10075950 | Nipple, plastic 3/8“ (2 btn models) O-ring (two required per nipple) |
| 5 | HYD10098573 | Kit, Pipe plug & o-ring |
| 6 | HYD10091035 | Wall bracket |
| 7 | HYD10020700 HYD10020900 | Selector valve grommet Back up ring for grommet |
| 8 | HYD10098545 | Cabinet 2 button dual select |
| 9 | HYD10098821 HYD10098824 | Button, Bottle fill, process blue Button, Bucket fill, process blue |
| 10 | HYD10079000 | Magnet |
| 11 | HYD10079010 | Spring |
| 12 | HYD10075980 | Valve parts kit a. diaphragm, b. armature c. spring, d. valve bonnet |
| 13 | HYD10075995 | Water valve |
14a b | HYD160 HYD161 | 1.0 GPM eductor assembly 3.5 GPM edcutor assembly |
15a b | HYD10070170 HYD10070470 | 1.0 GPM inner discharge tube 3.5 GPM inner discharge tube |
| 16a b | HYD10064794 HYD10077310 | 1.0 GPM outer discharge tube 3.5 GPM outer discharge tube |
| 17 | HYD10080720 | Hose hook dark grey (standard) for 3.5 GPM discharge tube |
| 18 | HYD10080955 | Selector replacement kit: e. Suction stub, f. O-ring, g. selector valve assembly |
| 19 | HYD690014 | Metering tip kit |
| 20 | HYD500814 HYD500821 | Tubing 1/4“ x 14‘ Tubing 1/4“ x 21‘ |
| 21 | HYD509900 | Weight |
| 22 | HYD10089410 | Footvalve -Viton (EPDM also available. Order 10076302) |
| Not Shown: HYD641751 | Security screws (for cabinet sides) |
| Key | Part No. | Description |
| 1 | HYD238100 | Strainer washer |
| 2 | HYD10082830 | Swivel collar (molded) |
| 3 | HYD10082811 | Swivel stem (molded) |
| 4 | HYD10075902 HYD10075950 | Nipple, plastic 3/8“ (2 btn models) O-ring (two required per nipple) |
| 5 | HYD10098573 | Kit, Pipe plug & o-ring |
| 6 | HYD10091035 | Wall bracket |
| 7 | HYD10020700 HYD10020900 | Selector valve grommet Back up ring for grommet |
| 8 | HYD10098545 | Cabinet 2 button dual select + 1 |
| 9 | HYD10098821 HYD10098824 | Button, Bottle fill, process blue Button, Bucket fill, process blue |
| 10 | HYD10079000 | Magnet |
| 11 | HYD10079010 | Spring |
| 12 | HYD10075980 | Valve parts kit a. diaphragm, b. armature c. spring, d. valve bonnet |
| 13 | HYD10075995 | Water valve |
14a b | HYD290 HYD291 | 1.0 GPM eductor assembly 3.5 GPM edcutor assembly |
15a b | HYD10088822 HYD90048495 | 1.0 GPM discharge tube with flooding ring (8“) 3.5 GPM discharge tube with flooding ring (4‘) |
| 16 | HYD10080956 | Selector replacement kit: e. support clip, f. Suction stub g. O-ring, h. selector valve assembly |
| 17 | HYD690014 | Metering tip kit |
| 18 | HYD3401-R | Hosebarb |
| 19 | HYD500814 HYD500821 | Tubing 1/4“ x 14‘ Tubing 1/4“ x 21‘ |
| 20 | HYD509900 | Weight |
| 21 | HYD10089410 | Footvalve -Viton (EPDM also available. Order 10076302) |
| 22 | HYD10080730 | Hose hook dark grey (standard) for 3.5 GPM discharge tube |
| Not Shown: HYD641751 | Security screws (for cabinet sides) |
| Key | Part No. | Description |
| 1 | HYD238100 | Strainer washer |
| 2 | HYD10082830 | Swivel collar (molded) |
| 3 | HYD10082811 | Swivel stem (molded) |
| 4 | HYD10075902 HYD10075950 | Nipple, plastic 3/8“ (2 btn models) O-ring (two required per nipple) |
| 5 | HYD10098573 | Kit, Pipe plug & o-ring |
| 6 | HYD10091035 | Wall bracket |
| 7 | HYD10020700 HYD10020900 | Selector valve grommet Back up ring for grommet |
| 8 | HYD10098544 | Cabinet 2 button dual select + 1 |
| 9 | HYD10098821 HYD10098824 | Button, Bottle fill, process blue Button, Bucket fill, process blue |
| 10 | HYD10079000 | Magnet |
| 11 | HYD10079010 | Spring |
| 12 | HYD10075980 | Valve parts kit a. diaphragm, b. armature c. spring, d. valve bonnet |
| 13 | HYD10075995 | Water valve |
14a b | HYD160 HYD161 | 1.0 GPM eductor assembly 3.5 GPM edcutor assembly |
15a b | HYD10070170 HYD10070470 | 1.0 GPM inner discharge tube 3.5 GPM inner discharge tube |
| 16a b | HYD10064794 HYD10077310 | 1.0 GPM outer discharge tube 3.5 GPM outer discharge tube |
| 18 | HYD10080955 | Selector replacement kit: e. Suction stub, f. O-ring, g. selector valve assembly |
| 19 | HYD690014 | Metering tip kit |
| 20 | HYD500814 HYD500821 | Tubing 1/4“ x 14‘ Tubing 1/4“ x 21‘ |
| 21 | HYD509900 | Weight |
| 22 | HYD10089410 | Footvalve -Viton (EPDM also available. Order 10076302) |
| 23 | HYD10080720 | Hose hook dark grey (standard) for 3.5 GPM discharge tube |
| Not Shown: HYD641751 | Security screws (for cabinet sides) |
| Key | Part No. | Description |
| 1 | HYD238100 | Strainer washer |
| 2 | HYD10082830 | Swivel collar (molded) |
| 3 | HYD10082811 | Swivel stem (molded) |
| 4 | HYD10075902 HYD10075950 | Nipple, plastic 3/8“ (2 btn models) O-ring (two required per nipple) |
| 5 | HYD10098573 | Kit, Pipe plug & o-ring |
| 6 | HYD10091035 | Wall bracket |
| 7 | HYD10020700 HYD10020900 | Selector valve grommet Back up ring for grommet |
| 8 | HYD10098544 | Cabinet 2 button dual select + 1 |
| 9 | HYD10098821 HYD10098824 | Button, Bottle fill, process blue Button, Bucket fill, process blue |
| 10 | HYD10079000 | Magnet |
| 11 | HYD10079010 | Spring |
| 12 | HYD10075980 | Valve parts kit a. diaphragm, b. armature c. spring, d. valve bonnet |
| 13 | HYD10075995 | Water valve |
14a b | HYD160 HYD161 | 1.0 GPM eductor assembly 3.5 GPM edcutor assembly |
15a b | HYD10070170 HYD10070470 | 1.0 GPM inner discharge tube 3.5 GPM inner discharge tube |
| 16a b | HYD10064794 HYD10077310 | 1.0 GPM outer discharge tube 3.5 GPM outer discharge tube |
| 18 | HYD10080955 | Selector replacement kit: e. Suction stub, f. O-ring, g. selector valve assembly |
| 19 | HYD690014 | Metering tip kit |
| 20 | HYD500814 HYD500821 | Tubing 1/4“ x 14‘ Tubing 1/4“ x 21‘ |
| 21 | HYD509900 | Weight |
| 22 | HYD10089410 | Footvalve -Viton (EPDM also available. Order 10076302) |
| 23 | HYD10080720 | Hose hook dark grey (standard) for 3.5 GPM discharge tube |
| Not Shown: HYD641751 | Security screws (for cabinet sides) |
AccuMax: The Next Generation of Chemical Dispensing
Ready to get started?
Our experts are here to help. Tell us more about what you need
so we can connect you to the right Hydro experts.
Common Questions
Have a different question? Reach Out
Water enters the system at varying pressures. Water pressure is regulated at the eductor by the Accupro technology. The regulated water pressure creates a vacuum that draws chemical at the recommended rate that provides for a consistent and expected dilution.

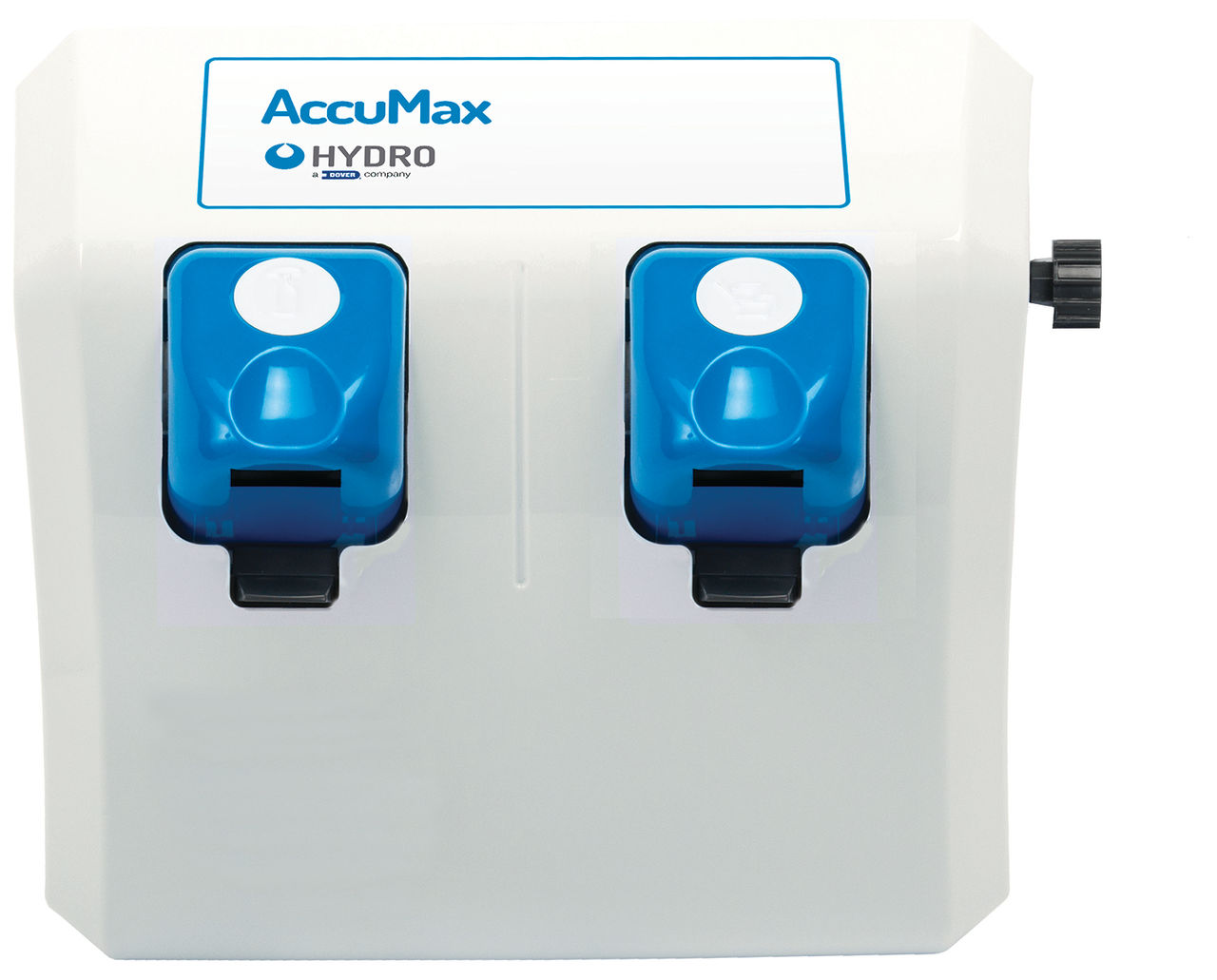

AccuMax dispensers are available in one, two, and three button configurations.
Yes, please contact the Hydro team to review button color options that are available based on a minimum order quantity. Example button colors are dark blue and dark grey.
Both E-Gap and AirGap.
Please check the locator associated with the Hydro website.
Related Products
Related Products
PSG
3798 Round Bottom Road,
Cincinnati, OH 45244
Cincinnati, OH 45244
3798 Round Bottom Road,
Cincinnati, OH 45244
Cincinnati, OH 45244
Hydro Resources
Hydro Resources
For new product, event and industry updates:
By entering your email you agree to receive marketing messages from PSG Hydro. You may unsubscribe at any time.
© 2023 PSG All Rights Reserved | A Dover Company | Privacy Policy | Cookies | Terms of Use
