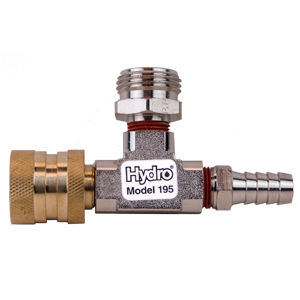

Bleeder T Device (Backflow prevention)
Accessory that enables venturi dispensers to meet water certifications for backflow prevention
The Bleeder T Device is an accessory that prevents damage to any upstream backflow protection device which is not rated for continuous supply pressure. In addition, by encouraging the user to turn off the faucet because of the visible flow of water, the device prevents hot/cold water cross contamination.
Available in NA only
Applications
Filling Mop Buckets Filling Sinks Filling Spray Bottles Filling Scrubbers Filling Large Tanks Foaming and Spraying Surface Cleaning
Allows for use in all locations in North America regardless of local water regulation requirements
Can be used with most Hydro Systems Dispensers.
Small Equipment Size Results in Easier Installation
Bleeder T Device Resources
Everything you need all in one place
Pressure bleed rates
Pressure bleed rate of 0.33 GPM at 20 psig (minimum specification is 0.1 GPM at 20 psig). Pressure bleeds to 0 psig in less than a minute when the water is turned off.
Certifications
IAPMO listed
Application diversity
Provides the ability to supply water to two dispensers from one faucet; or supply one dispenser and maintain normal faucet operation at the same time
| Model | Description |
| 1951 | Dual Bleeder T Device |
| 195HD | Bleeder T Device HD |
No files found.
Pressure bleed rates
Pressure bleed rate of 0.33 GPM at 20 psig (minimum specification is 0.1 GPM at 20 psig). Pressure bleeds to 0 psig in less than a minute when the water is turned off.
Certifications
IAPMO listed
Application diversity
Provides the ability to supply water to two dispensers from one faucet; or supply one dispenser and maintain normal faucet operation at the same time
| Model | Description |
| 1951 | Dual Bleeder T Device |
| 195HD | Bleeder T Device HD |
No files found.
Ready to get started?
Our experts are here to help. Tell us more about what you need
so we can connect you to the right Hydro experts.
Common Questions
Have a different question? Reach Out
The Bleeder T Device prevents damage to any upstream backflow protection device which is not rated for continuous supply pressure. In addition, by encouraging the user to turn off the faucet because of the visible flow of water, the device prevents hot/cold water cross contamination.
0.15-0.33.
Venturi Dispensers
Please check the Data Sheet that is available on the Hydro Systems website.
Please check the locator associated with the Hydro website.
