EvoClean

Venturi Dispenser, On-Premise Laundry, 8 chemistries, Up to 51 oz/min (1,500 mL/min)

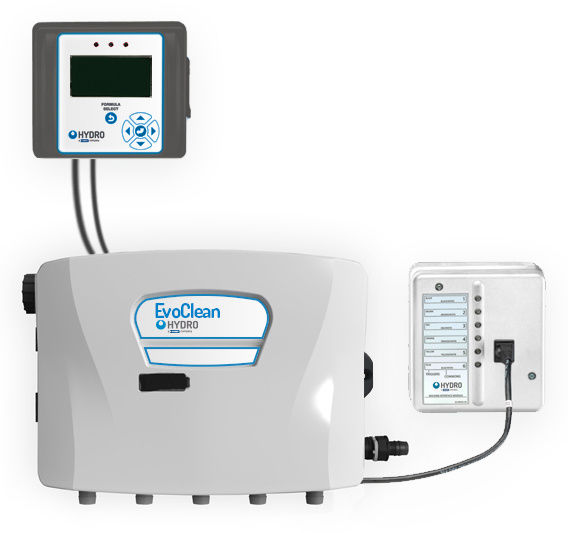

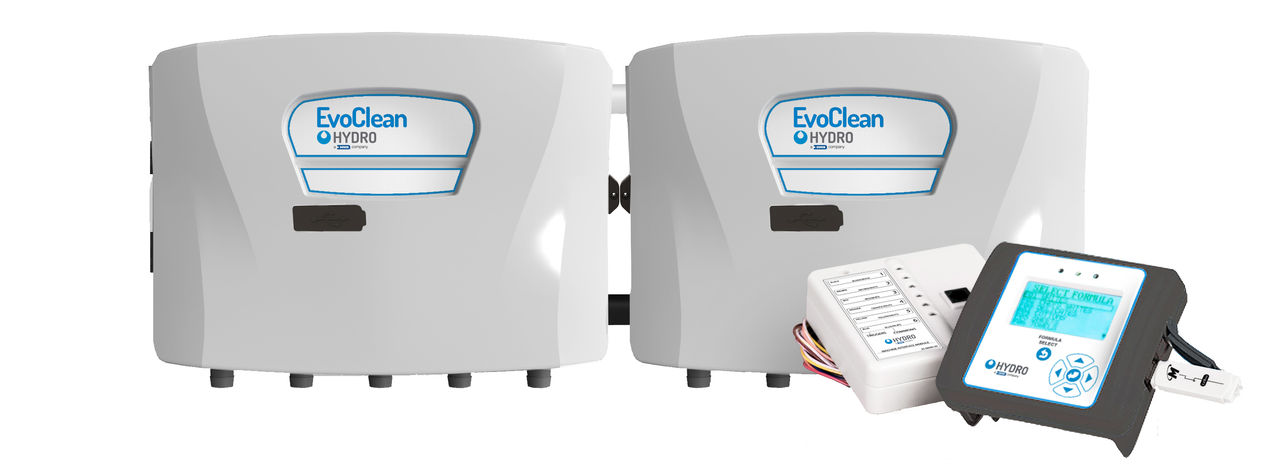

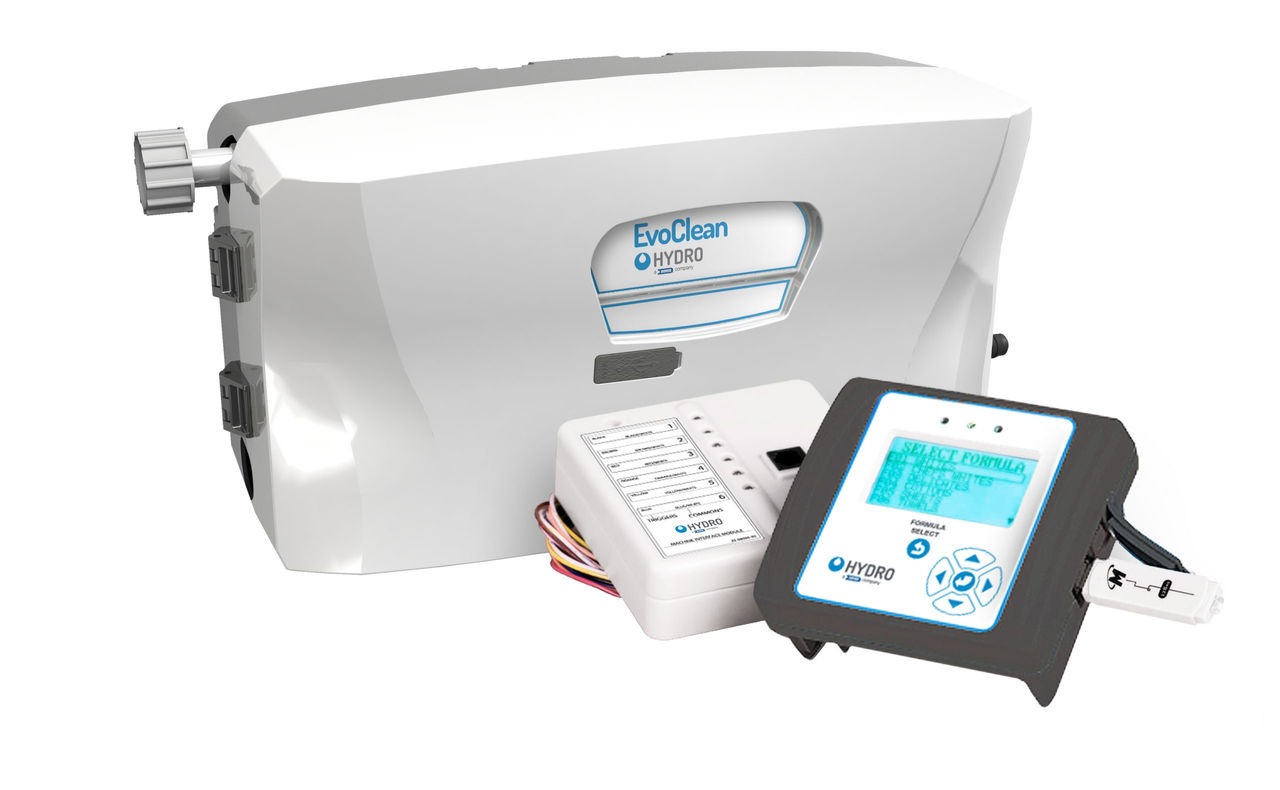

EvoClean is the world’s first venturi-based, water-powered laundry dispenser. It is compatible with the Total Eclipse Controller and includes an integrated flush manifold. The system is available in 4, 6 and 8 product configurations with either low or high chemical flow rate. This covers a full range of product configurations and washer sizes used in OPL accounts.

Markets

Laundry

Applications

On-Premise

The worlds first venturi laundry dispensing system is available in 4, 6, and 8 product configurations.

Eliminates costs associated with squeeze tube maintenance.

More consistent chemical delivery when compared to peristaltic pumps.

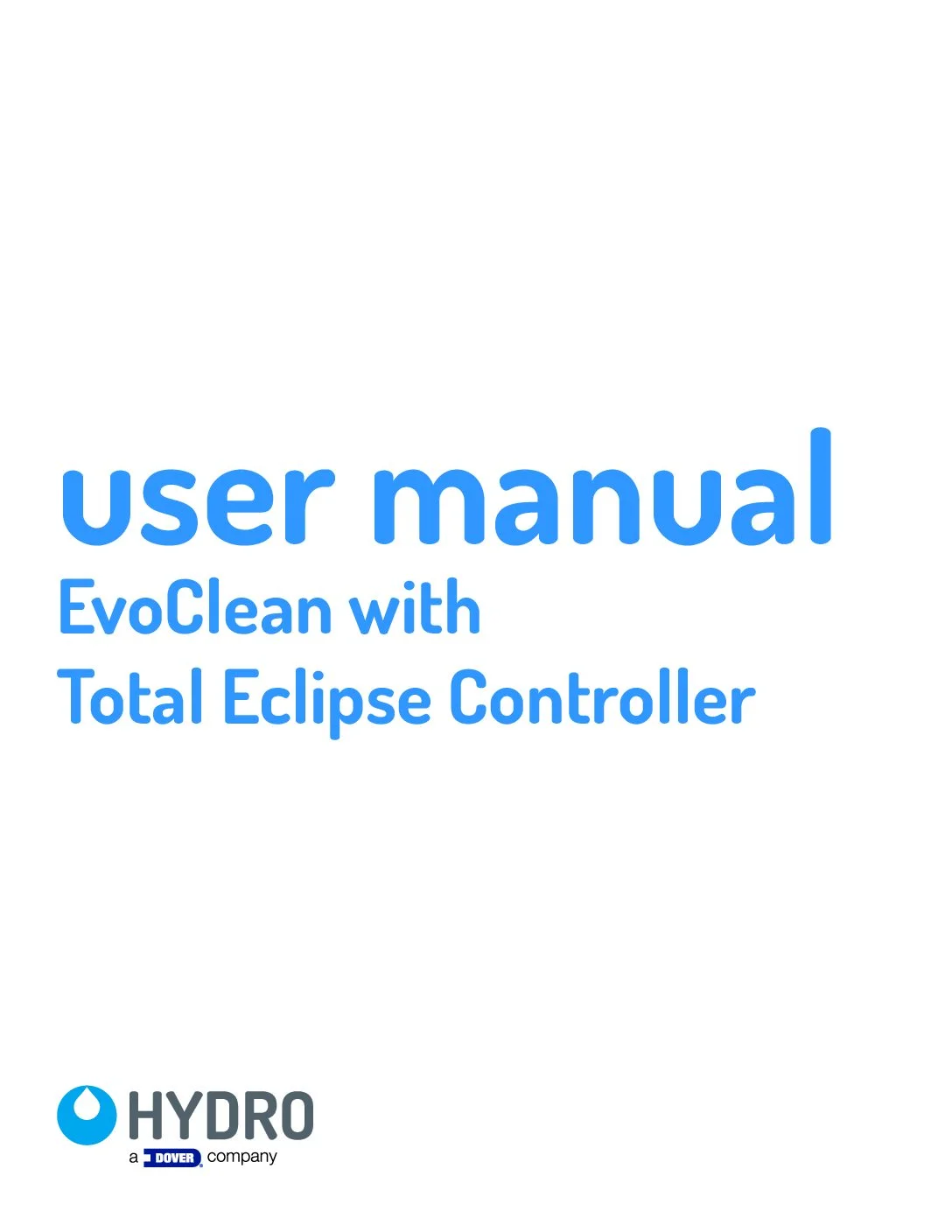

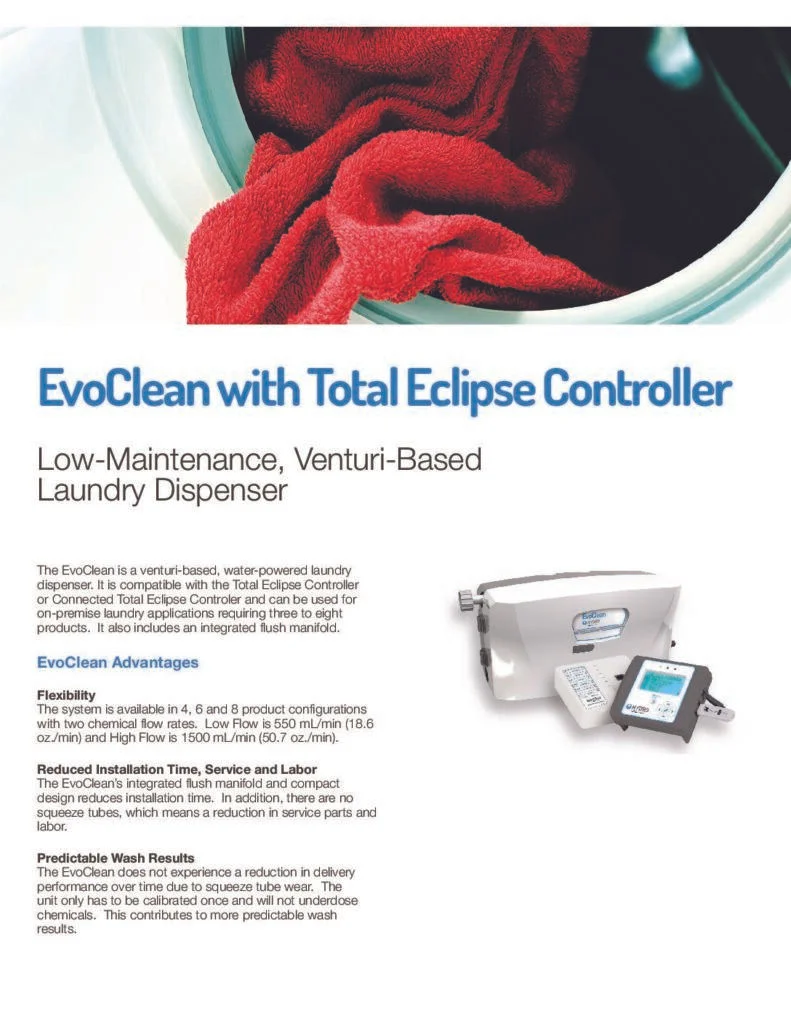

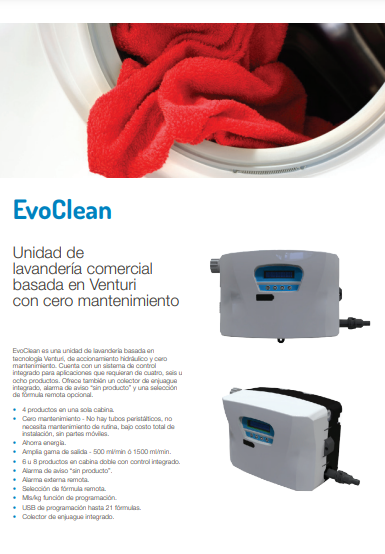

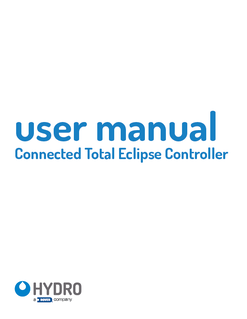

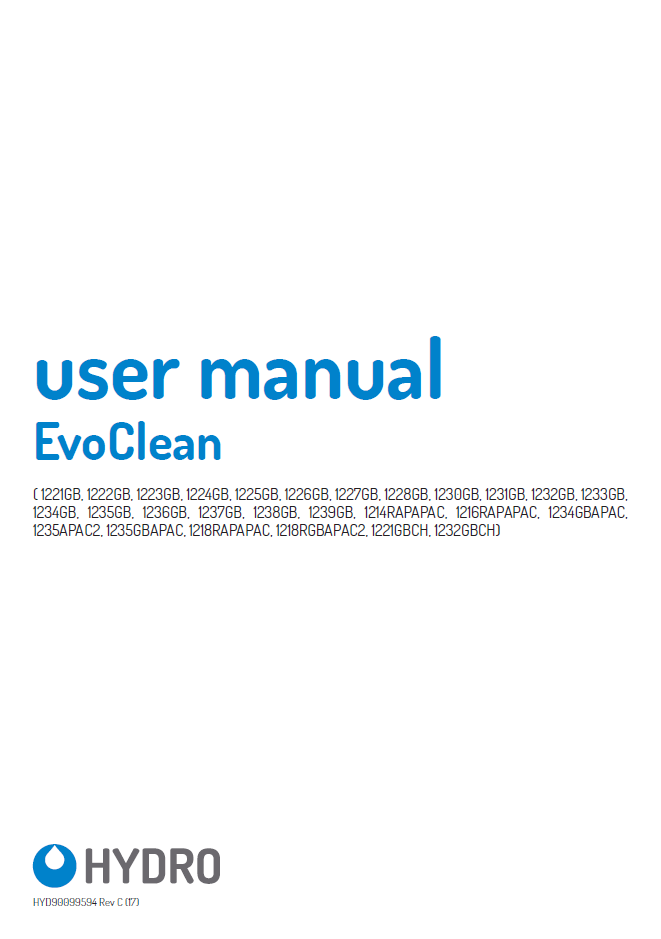

EvoClean Resources

Everything you need all in one place

Compact design

The system weighs anywhere from 40%-80% less than competitive dispensers and takes up less space on the wall.

Reduced installation time, service and labor

- The dispenser is designed to reduce installation time, service and labor. It has pre-wired power and signal cables, eliminating the need to run conduit or terminate wires inside the dispenser. There are no squeeze tubes, which are generally changed every 1-6 months. Also, the integrated flush manifold eliminates the need to source and install multiple products.

Installer and operator safety

EvoClean reduces the risk of shock, because it utilizes low voltage inside the housing. It has been certified safe according to various global standards, including UL and CSA in North America and CE for Europe.

Predictable wash results

Because EvoClean does not utilize squeeze tubes, it does not experience a reduction in delivery performance over time due to squeeze tube wear. The unit must only be calibrated once and will not under-deliver chemicals. This contributes to more predictable wash results.

Water and energy savings

EvoClean saves both water and energy. It uses less water because its eductor restricts flow to 0.5 GPM or 1.0 GPM, depending on the model. It also saves energy because it does not use AC or DC motors.

Flexibility

EvoClean is backwards compatible with the Total Eclipse Controller, which can accommodate up to 20 formulas. The controller offers Auto Formula Select to simplify formula selection, as well as detailed reports on chemical usage, production, and costs.

Model NumberNumber of ProductsFlow RateMachine Interface IncludedConnected Total Eclipse Controller Included
HYDE124L35GCONM4LowYesYes
HYDE124H35GCONM4HighYesYes
HYDE124L35G 4LowNoNo
HYDE124H35G4HighNoNo
HYDE126L35GCONM6LowYesYes
HYDE126H35GCONM6HighYesYes
HYDE126L35G6LowNoNo
HYDE126L35G6HighNoNo
HYDE128L35GCONM8LowYesYes
HYDE128L35GCONM8HighYesYes
HYDE128L35G8LowNoNo
HYDE128H35G8HighNoNo

Watch our installation video

Watch this video to see how it works

Ready to get started?

Our experts are here to help. Tell us more about what you need
so we can connect you to the right Hydro experts.

I am ready to buy

I have a product question

I need technical
support

General Inquiry

I am ready to buy

I have a product question

I need technical
support

General Inquiry

Common Questions

Have a different question? Reach Out

2.5-4.0 bar or 40-60 psi

Yes, EvoClean produces significant water and energy savings when compared to peristaltic pumps.

We've sold over 30,000 EvoCleans since launching in 2016.

Yes, the EvoClean has been proven to reduce service costs and instances where chemical is under-delivered due to squeeze tube wear.

Please check the locator associated with the Hydro website.
