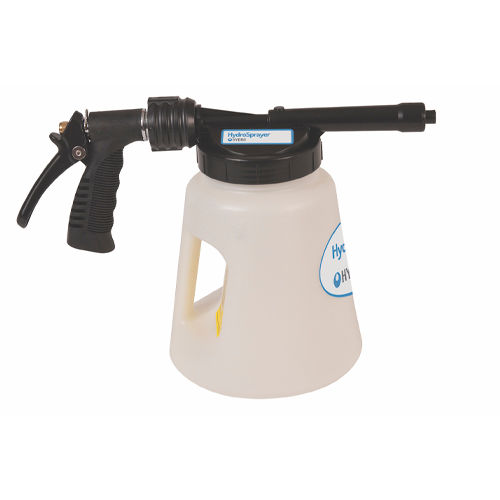

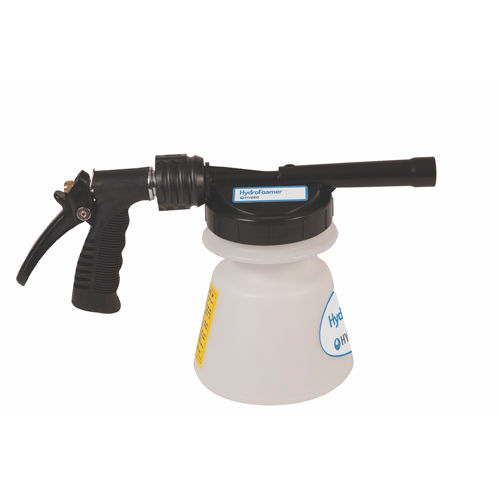

HydroFoamer/Sprayer
Venturi Dispenser, portable foaming or spraying, one chemistry, one dispenser
The HydroFoamer and HydroSprayer offer easy automatic dilution with convenient control of where and how solution is applied. On and off functions are at your fingertips, trigger controlled on the spray nozzle. With a wide range of applications, these products are a popular choice for economical foaming and spraying!
Applications
Foaming and Spraying Vehicle Chemical Dilution Chemical delivery
Reduces the cost of ownership since the equipment is manufactured from chemically compatible materials
Utilizes Hydro Systems standard tips that allow for up to 20% better dilution accuracy
Reduces the cost of ownership by 25% since the same chemical container can be used for both the spraying and foaming options
HydroFoamer/Sprayer Resources
Everything you need all in one place
Reduces the cost of ownership by 25% since the same chemical container can be used
Since the same chemical container can be used for both spraying and foaming options, the same equipment can be used for both spraying and foaming options.
Utilizes Hydro Systems standard tips that allow for up to 20% better dilution accuracy
The use of standard Hydro Systems metering tips allow for more accurate dilution performance that results in more accurate chemical usage. Other products will result in more chemistry than what is needed resulting in wasted chemistry or not enough chemistry is used resulting in the need for a rewash.
Features chemically resistant materials that result in longer lasting equipment
HydroFoamer/HydroSprayer features chemically resistant materials that provide for longer lasting equipment life.
| Model | Capacity | Approximate Dilution Range | |
| Min | Max* | ||
| 481 | 96 ounces (2.8 liters) | 12:1 | 128:1 |
| 483 | 48 ounces (1.4 liters) | 12:1 | 128:1 |

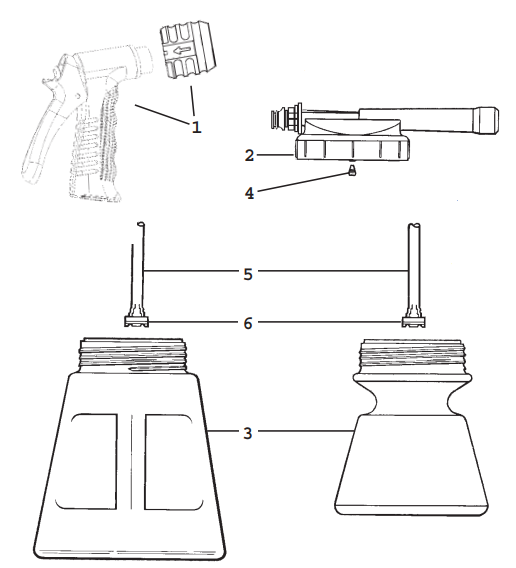

| KEY | PART NO. | DESCRIPTION |
| 1 | 10083713 | Spray nozzle & quick disconnect |
| 2 | 10061501 | Foamer lid assembly |
| 3 | 688201 | Concentrate container - 96 oz. |
| 688202 | Concentrate container - 48 oz. | |
| 4 | 690014 | Metering tip kit |
| 5 | 500808 | Suction tube, 8" |
| 6 | 609600 | Foot strainer |

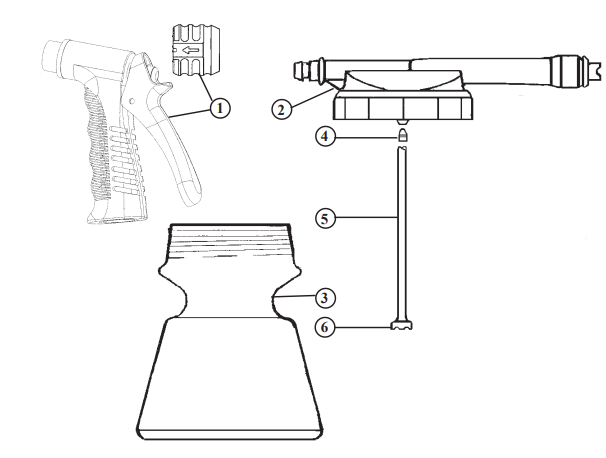

| KEY | PART NO. | DESCRIPTION |
| 1 | 10083713 | Spray gun & quick disconnect |
| 2 | 10061501 | Sprayer lid assembly Concentrate container |
| 3 | 688201 | 96 oz. container (not shown) |
| 688202 | 48 oz. container (shown) | |
| 4 | 690014 | Metering tip kit |
| 5 | 500808 | Suction tube, 8" |
| 6 | 609600 | Foot strainer |
No files found.
Reduces the cost of ownership by 25% since the same chemical container can be used
Since the same chemical container can be used for both spraying and foaming options, the same equipment can be used for both spraying and foaming options.
Utilizes Hydro Systems standard tips that allow for up to 20% better dilution accuracy
The use of standard Hydro Systems metering tips allow for more accurate dilution performance that results in more accurate chemical usage. Other products will result in more chemistry than what is needed resulting in wasted chemistry or not enough chemistry is used resulting in the need for a rewash.
Features chemically resistant materials that result in longer lasting equipment
HydroFoamer/HydroSprayer features chemically resistant materials that provide for longer lasting equipment life.
| Model | Capacity | Approximate Dilution Range | |
| Min | Max* | ||
| 481 | 96 ounces (2.8 liters) | 12:1 | 128:1 |
| 483 | 48 ounces (1.4 liters) | 12:1 | 128:1 |
| KEY | PART NO. | DESCRIPTION |
| 1 | 10083713 | Spray nozzle & quick disconnect |
| 2 | 10061501 | Foamer lid assembly |
| 3 | 688201 | Concentrate container - 96 oz. |
| 688202 | Concentrate container - 48 oz. | |
| 4 | 690014 | Metering tip kit |
| 5 | 500808 | Suction tube, 8" |
| 6 | 609600 | Foot strainer |
| KEY | PART NO. | DESCRIPTION |
| 1 | 10083713 | Spray gun & quick disconnect |
| 2 | 10061501 | Sprayer lid assembly Concentrate container |
| 3 | 688201 | 96 oz. container (not shown) |
| 688202 | 48 oz. container (shown) | |
| 4 | 690014 | Metering tip kit |
| 5 | 500808 | Suction tube, 8" |
| 6 | 609600 | Foot strainer |
No files found.
Ready to get started?
Our experts are here to help. Tell us more about what you need
so we can connect you to the right Hydro experts.
Common Questions
Have a different question? Reach Out
No. The venturi is operated based on hydro power.
No. There is a separate nozzle used for foaming vs. spraying.
48 (1.4 Liters) and 96 ounces (2.8 Liters).
Yes. Please check the data sheet for a full line of accessories.
It depends on chemical viscosity but it is 128:1 based on chemistry with a viscosity of 1cP.
