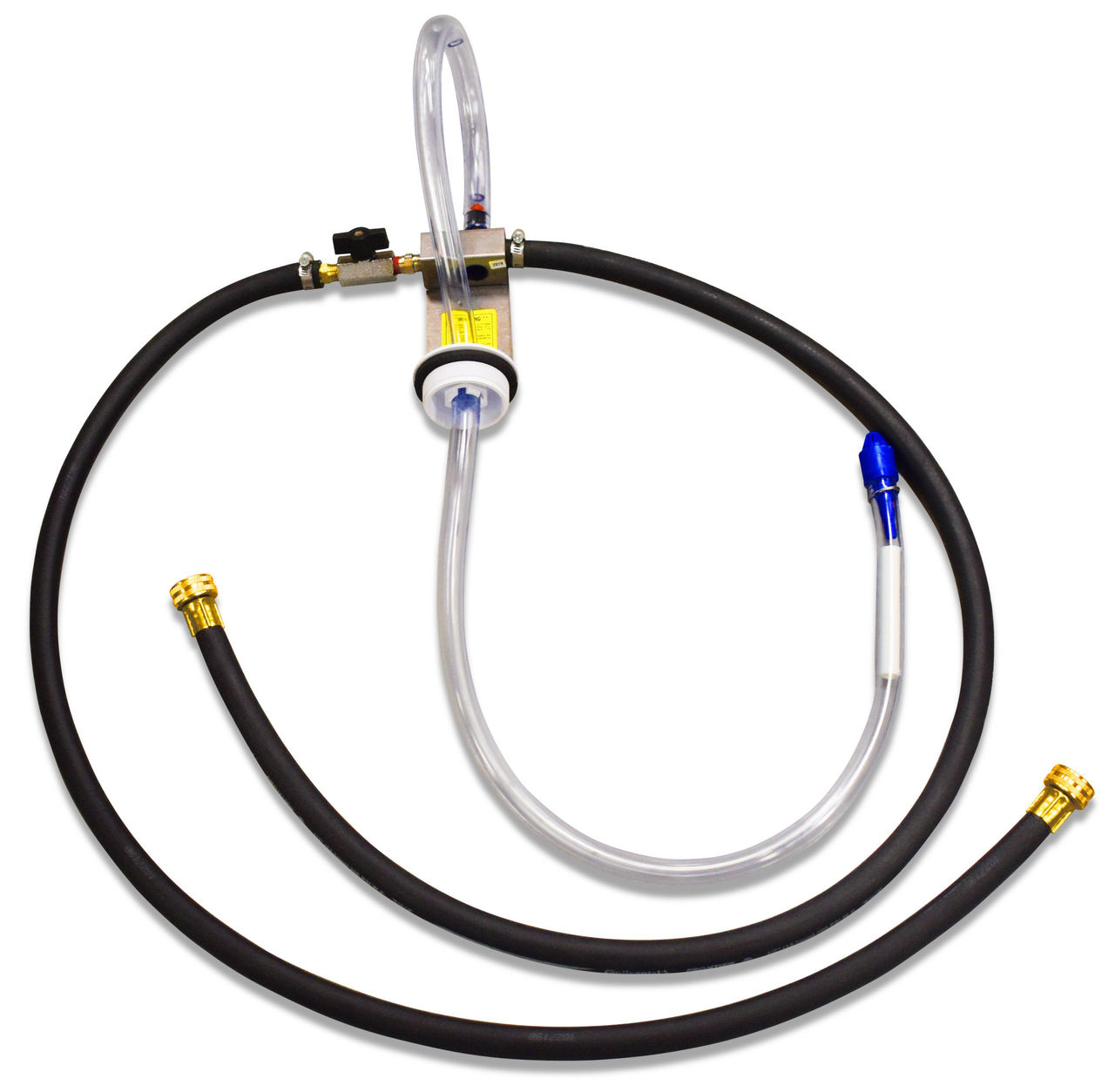

HydroMaster LCU
Venturi Dispenser, wall or drum mounted, 1 chemistry w/ 1 dispenser
As antibiotic use on the farm decreases, it is more important than ever to keep animals healthy by cleaning and disinfecting the environment in which they live. HydroMaster LCU pumps from Hydro Systems are designed to allow you to easily inject water line cleaning and sanitizing solutions into your water lines without preparing a stock solution.
Multiple mounting options allow for greater installation options
Utilizes Hydro Systems tips that allow for up to 20% better dilution accuracy
Reduces the cost of ownership since the equipment is manufactured from chemically compatible materials
HydroMaster LCU Resources
Everything you need all in one place
Multiple mounting options allow for greater installation options
HydroMaster LCU can either be drum or wall-mounted resulting in the ability to adjust the location where the unit is installed depending on the location of the chemical container.
Utilizes Hydro Systems standard tips that allow for up to 20% better dilution accuracy
The use of standard Hydro Systems metering tips allow for more accurate dilution performance that results in more accurate chemical usage. Other products will result in more chemistry than what is needed resulting in wasted chemistry or not enough chemistry is used resulting in the need for a rewash.
Features chemically resistant materials that result in longer lasting equipment
HydroMaster LCU features chemically resistant materials that provide for longer lasting equipment life.
| Part Number | Description |
| HYD210 | HydroMaster LCU |

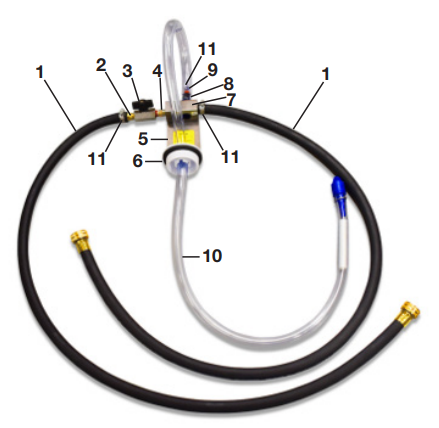

| KEY | PART NO. | DESCRIPTION |
| 1 | HYD10048530 | HOSE,1/2IN ID X 4FT 2 |
| 2 | HYD41-06473-84 | Adapter |
| 3 | HYD502000 | Ball valve |
| 4 | HYD234300 | Nipple |
| 5 | HYD6150-K | Mounting bracket |
| 6 | HYD10090910 | Bung adapter assy. |
| 7 | HYD440318 | Eductor, Dark blue |
| 8 | HYD440101 | Suction stub |
| 9 | HYD690015 | Metering tip (kit) |
| 10 | HYD10099773 | Suction tube assy.(includes c, d, e & f) |
| a | HYD616100 | ¼" x 7" tubing |
| b | HYD505804 | 1/2" ID tubing c |
| c | HYD250006 | Ceramic weight |
| d | Foot valve, Viton* | HYD90060717 |
| 11 | HYD608300 | Hose clamp |
No files found.
Multiple mounting options allow for greater installation options
HydroMaster LCU can either be drum or wall-mounted resulting in the ability to adjust the location where the unit is installed depending on the location of the chemical container.
Utilizes Hydro Systems standard tips that allow for up to 20% better dilution accuracy
The use of standard Hydro Systems metering tips allow for more accurate dilution performance that results in more accurate chemical usage. Other products will result in more chemistry than what is needed resulting in wasted chemistry or not enough chemistry is used resulting in the need for a rewash.
Features chemically resistant materials that result in longer lasting equipment
HydroMaster LCU features chemically resistant materials that provide for longer lasting equipment life.
| Part Number | Description |
| HYD210 | HydroMaster LCU |
| KEY | PART NO. | DESCRIPTION |
| 1 | HYD10048530 | HOSE,1/2IN ID X 4FT 2 |
| 2 | HYD41-06473-84 | Adapter |
| 3 | HYD502000 | Ball valve |
| 4 | HYD234300 | Nipple |
| 5 | HYD6150-K | Mounting bracket |
| 6 | HYD10090910 | Bung adapter assy. |
| 7 | HYD440318 | Eductor, Dark blue |
| 8 | HYD440101 | Suction stub |
| 9 | HYD690015 | Metering tip (kit) |
| 10 | HYD10099773 | Suction tube assy.(includes c, d, e & f) |
| a | HYD616100 | ¼" x 7" tubing |
| b | HYD505804 | 1/2" ID tubing c |
| c | HYD250006 | Ceramic weight |
| d | Foot valve, Viton* | HYD90060717 |
| 11 | HYD608300 | Hose clamp |
No files found.
Ready to get started?
Our experts are here to help. Tell us more about what you need
so we can connect you to the right Hydro experts.
Common Questions
Have a different question? Reach Out
No. The venturi is operated based on hydro power.
No. There unique threaded types that need to be used with HydroMaster that come with the unit.
It is located on the data sheet.
Yes.
Yes, both inlet and outlet hoses.
