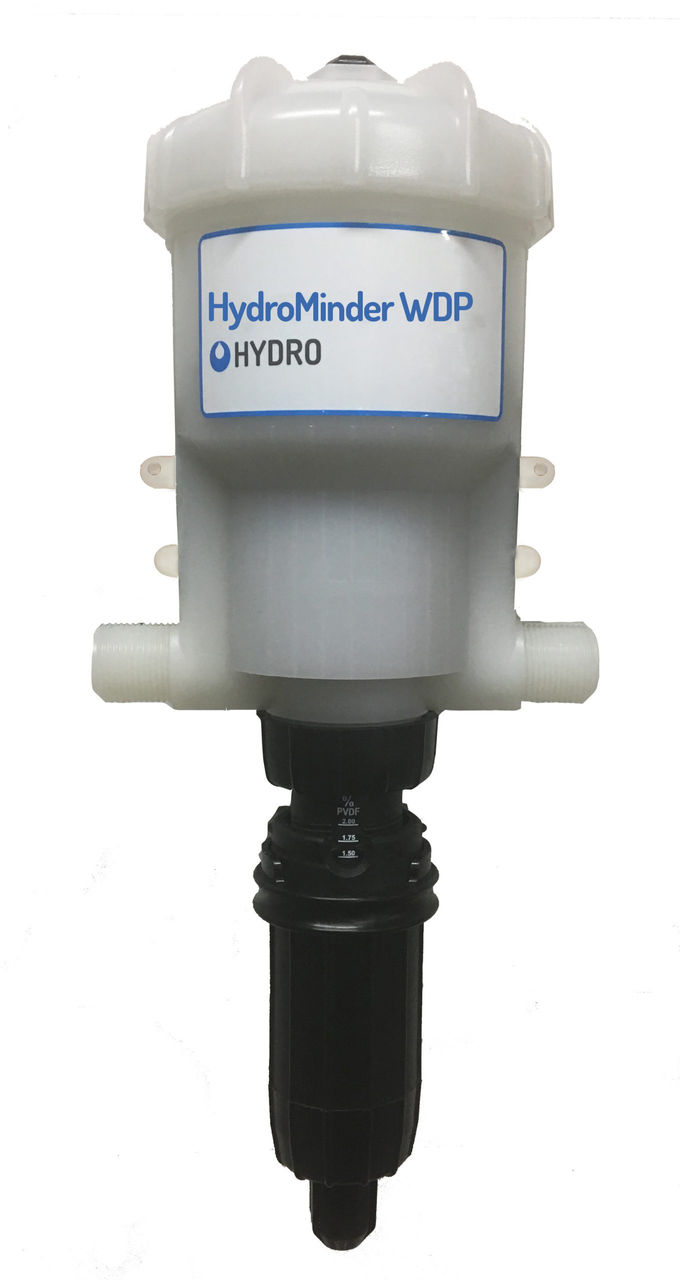

HydroMinder WDP

Water-Driven Pump for car wash, dilution range (500:1 to 20:1), up to 11 GPM

The HydroMinder name has been well-known in the vehicle wash market space for many years, and now Hydro Systems is expanding its water-driven pump (WDP) product line for use in this industry. HydroMinder WDP is designed for use with the most common chemicals throughout all phases of the vehicle wash cycle. It couples outstanding chemical resistance with the ability to last 62 million cycles prior to maintenance.

Applications

Vehicle Chemical Dilution Nutrient Delivery Line Cleaning Solutions Chemical Delivery

Exceeds 62 million cycles before maintenance

Benifits One

Toolfree maintenance reduces repair time by 50%

Benifits One

Adjustable lower ends allow for multiple chemistries to be used with one unit reducing total cost of ownership

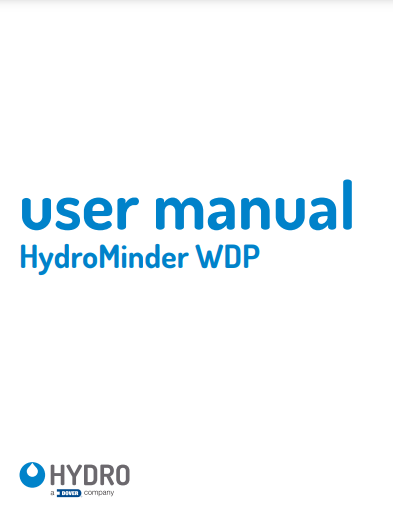

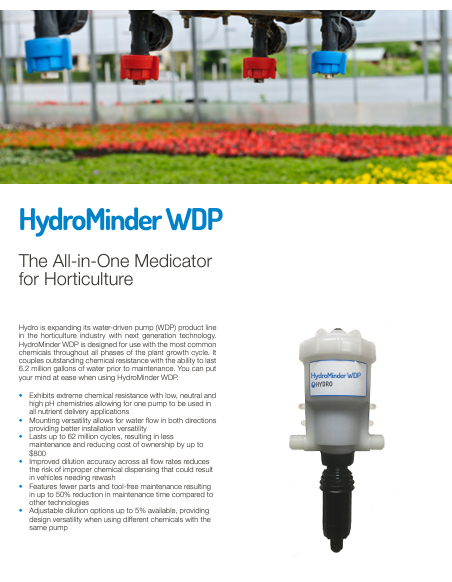

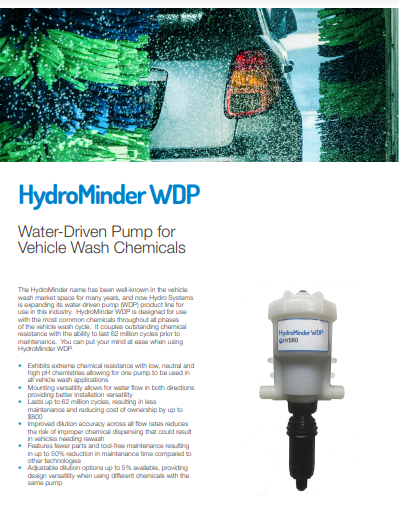

HydroMinder WDP Resources

Everything you need all in one place

Longer lasting life

Not only is the HydroMinder WDP water-driven pump specifically engineered to accurately inject chemistry into water, it lasts up to 62 million cycles before maintenance is required. The pump's advanced chemical resistance allows the pump to last longer in applications where aggressive chemicals are present.

Tool-free maintenance is a standard feature

HydroMinder WDP can be repaired without the need for tools. This water-driven pump can be repaired up to 50% less time compared to other water-driven pumps.

The same pump can be used with multiple lower ends

The ability to use the same pump with different lower ends allows the user to switch between different dilution ratios without having to buy a new pump.

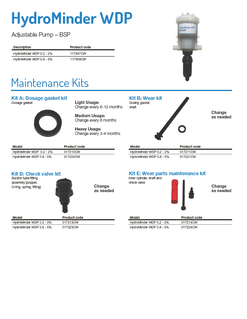

5.00 Injector Repair Parts

HydroMinder WDP Model
Part # NPT/GHT
Part # BSP
Flow Rate Injection Rate
Operating Pressure
Approximate Dimensions
Weight Water Capacity Per Cycle
Adjustable 2% Model
HYD117947CW
HYD117957CW
0.02 - 11 GPM
5 - 2500 L/hr.
1:500 - 1:50
0.2 - 2%

5 - 90 psi
0.3 - 6.2 bar
15” (38.1 cm) tall
6.5” (16.5 cm) wide
5.25” (13.3 cm) deep
2.62 lbs.
1.19 kg.
12.8 oz.
0.38 L
Adjustable 5% Model
HYD117948CW
HYD117958CW
0.02 - 11 GPM
5 - 2500 L/hr.
1:128 - 1:20
0.8 - 5%
5 - 90 psi
0.3 - 6.2 bar
15” (38.1 cm) tall
6.5” (16.5 cm) wide
5.25” (13.3 cm) deep
2.62 lbs.
1.19 kg.
12.8 oz.
 0.38 L

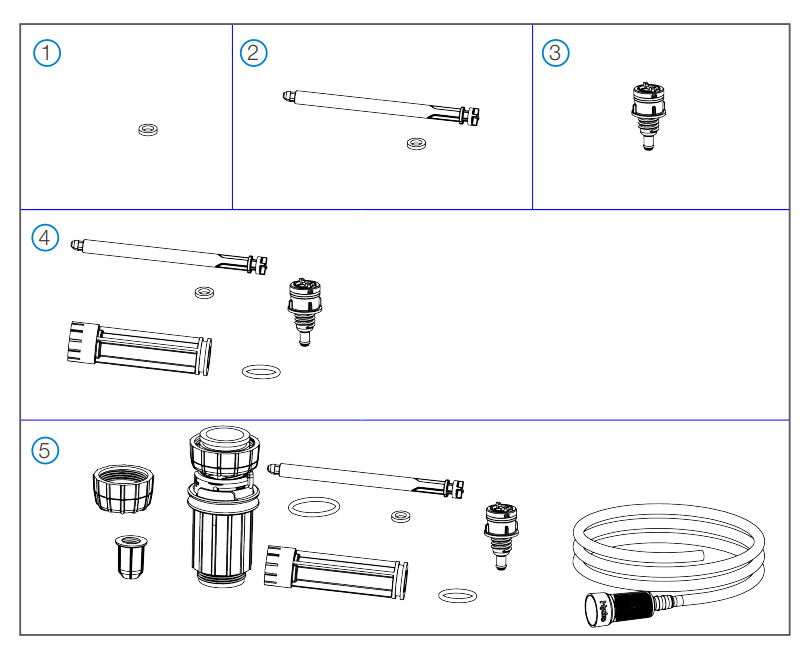

Hydrominder_WDP_1
KEYPART NO.DESCRIPTION
1HYD011732 Kit M - Mounting bracket kit
2HYD017200XT Kit H - Motor piston replacement
3HYD102601NPTBody, NPT, PVDF, AquaBlend Xtreme
HYD102601BSPBody, BSP, PVDF, AquaBlend Xtreme

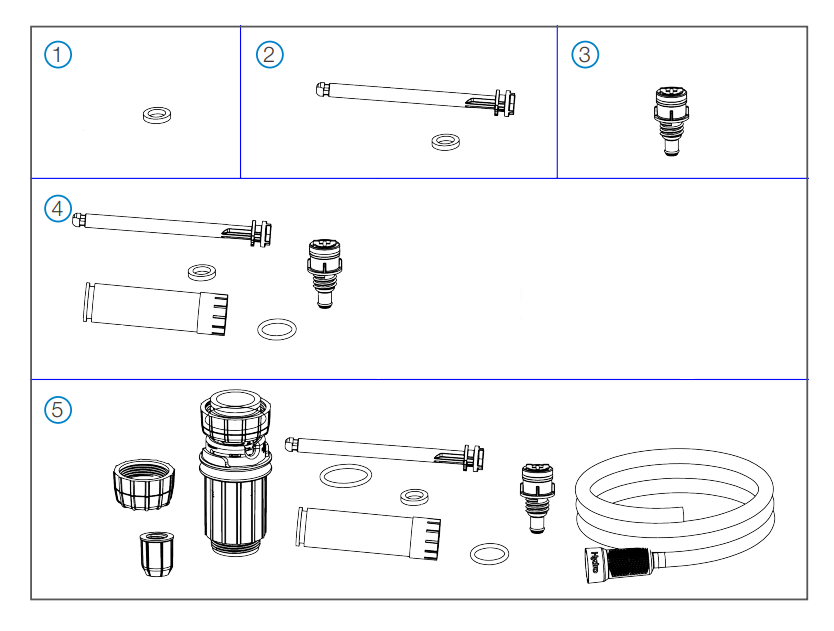

Hydrominder_WDP_2
KEYPART NO.DESCRIPTION
1HYD017210CWKit A: Dosage gasket kit
2HYD017211CWKit B: Wear kit
3HYD017213CWKit D: Check valve kit
4HYD017214CWKit E: Wear parts maintenance kit
5HYD017216CWKit G: Complete lower end kit
hydromimderwdp503
KEYPART NO.DESCRIPTION
1HYD017220CWKit A: Dosage gasket kit
2HYD017221CWKit B: Wear kit
3HYD017223CWKit D: Check valve kit
4HYD017224CWKit E: Wear parts maintenance kit
5HYD017226CWKit G: Complete lower end kit

Ready to get started?

Our experts are here to help. Tell us more about what you need
so we can connect you to the right Hydro experts.

I am ready to buy

I have a product question

I need technical
support

General Inquiry

I am ready to buy

I have a product question

I need technical
support

General Inquiry

Common Questions

Have a different question? Reach Out

HydroMinder WDP has been designed for use with various chemistries ranging from low, neutral, to high pH used in vehicle wash applications. Example chemistries can be found on the data sheet.

No. The product is only available with adjustable lower ends.

1:500 or 0.2%.

1,500 cP

NPT/GHT and BSP connections.
