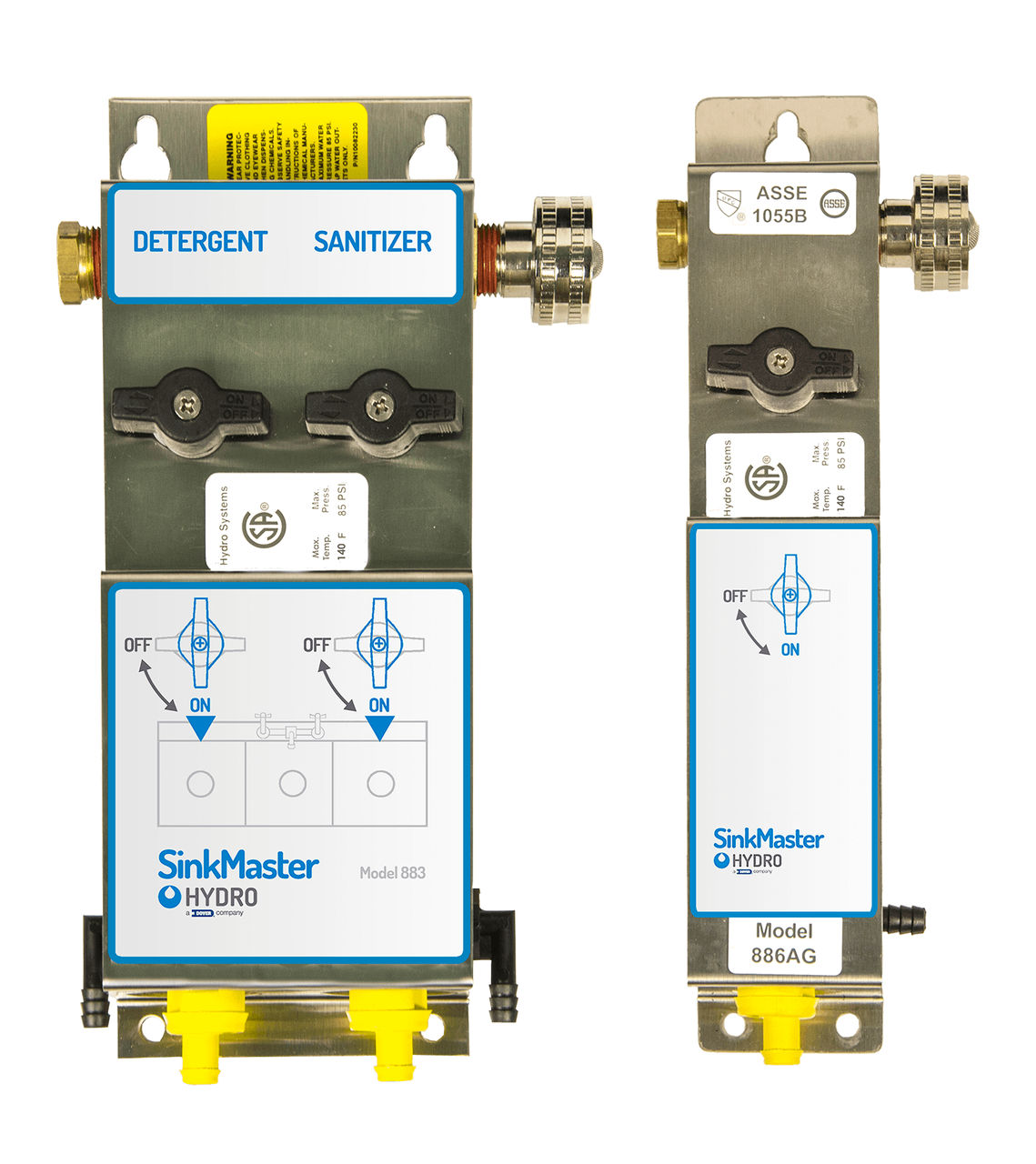

SinkMaster
Venturi Dispenser, wall mounted above multiple compartment sinks, Up to 2 Chemistries w/ 1 Dispenser
SinkMaster dispensers meet the need for filling large sinks with detergent and/or sanitizer in food service applications. Available in one or two product versions, Hydro’s SinkMaster allows you to conveniently fill large sinks with properly diluted solutions of detergent and/or sanitizer regardless of the size of the sink or how much solution is dispensed.
Available in NA only
Features patented AccuPro Pressure Regulation Technology That Reduces Chemical Consumption by 20%
Meets water certifications eliminating the need for additional backflow prevention equipment reducing total cost of ownership by up to 35%
Reduces the cost of ownership since the equipment is manufactured from chemically compatible materials

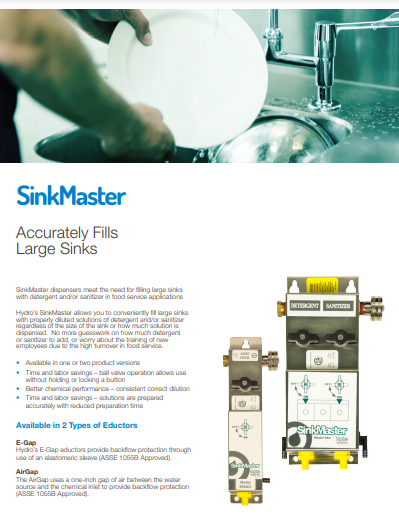

SinkMaster Resources
Everything you need all in one place
Accuracy matters
Hydro Systems’ patented AccuPro Pressure Regulation Technology comes standard with SinkMaster. AccuPro Technology eliminates dilution variance to ensure your customers are always using the recommended amount of chemical. Facilities are cleaner and safer when chemicals are working properly.
Meets water regulations resulting in lower operating costs
SinkMaster offers both E-Gap and AirGap eductor options that meet local water regulations so you do not need to purchase additional backflow equipment. As a result, your cost of ownership can be reduced by up to 35%.
Chemical compatibility with a wide range of chemicals
Reduces the cost of ownership since SinkMaster features surfaces that come into contact with dispensed chemistries that are highly resistant to a wide variety of different chemistries. As a result, SinkMaster will operate for a very long time before maintenance is required.
| Part No. | Description |
| HYD886 | SinkMaster One Product E-Gap |
| HYD886AG | SinkMaster One Product AirGap |
| HYD883 | SinkMaster Two Products E-Gap |
| HYD8831 | SinkMaster Two Products AirGap |

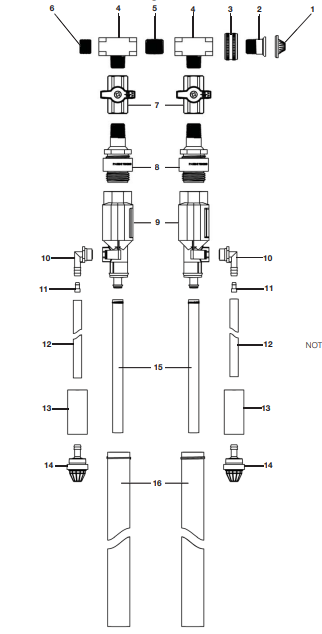

| Key | Part No. | Description |
| 1 | 238100 | Strainer washer |
| 2 | 276800 | Swivel stem |
| 3 | 506502 | Swivel nut |
| 4 | 133000 | Branch tee |
| 5 | 10027700 | 3/8" nipple |
| 6 | 323338 | Pipe plug, brass |
| 7 | 10080320 | Ball valve |
| 8 | 10091989 | Adapter, APAD |
| 9 | 161 | Eductor retrofit kit (includes eductor, inner discharge tube and outer discharge tube) |
| 10 | 10077500 | 90º Angle hose barb |
| 11 | 10027209 | Metering tip (kit) |
| 12 | 500814 | Tubing, 1/4" x 14' |
| 13 | 509900 | Weight |
| 14 | 10089410 | Foot valve, Viton |
| 15 | 10070470 | Inner discharge tube |
| 16 | 10077310 | Outer discharge tube |

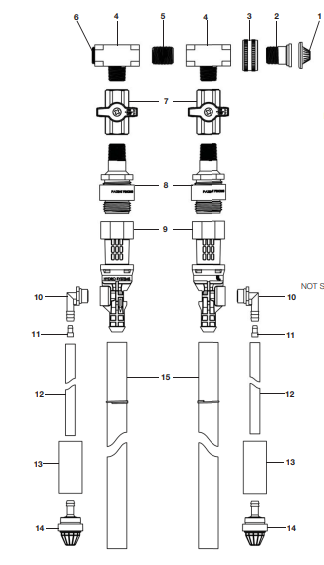

| Key | Part No. | Description |
| 1 | 238100 | Strainer washer |
| 2 | 276800 | Swivel stem |
| 3 | 506502 | Swivel nut |
| 4 | 133000 | Branch tee |
| 5 | 10027700 | 3/8" nipple |
| 6 | 323338 | Pipe plug, brass |
| 7 | 10080320 | Ball valve |
| 8 | 10091989 | Adapter, APAD |
| 9 | 291 | 3.5 GPM E-Gap Eductor Assy. |
| 10 | 10077500 | 90º Angle hose barb |
| 11 | 10027209 | Metering tip (kit) |
| 12 | 500814 | Tubing, 1/4" x 14' |
| 13 | 509900 | Weight |
| 14 | 10089410 | Foot valve, Viton |
| 15 | 90048495 | Discharge tube assembly |

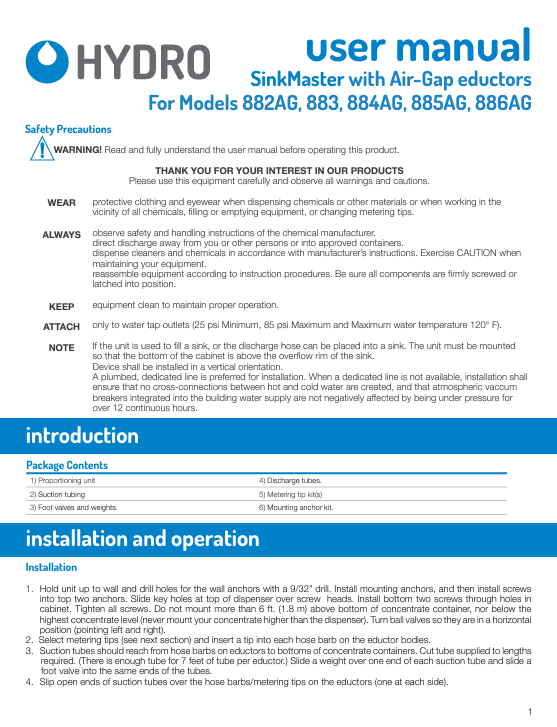

SinkMaster Instruction Guide
Accuracy matters
Hydro Systems’ patented AccuPro Pressure Regulation Technology comes standard with SinkMaster. AccuPro Technology eliminates dilution variance to ensure your customers are always using the recommended amount of chemical. Facilities are cleaner and safer when chemicals are working properly.
Meets water regulations resulting in lower operating costs
SinkMaster offers both E-Gap and AirGap eductor options that meet local water regulations so you do not need to purchase additional backflow equipment. As a result, your cost of ownership can be reduced by up to 35%.
Chemical compatibility with a wide range of chemicals
Reduces the cost of ownership since SinkMaster features surfaces that come into contact with dispensed chemistries that are highly resistant to a wide variety of different chemistries. As a result, SinkMaster will operate for a very long time before maintenance is required.
| Part No. | Description |
| HYD886 | SinkMaster One Product E-Gap |
| HYD886AG | SinkMaster One Product AirGap |
| HYD883 | SinkMaster Two Products E-Gap |
| HYD8831 | SinkMaster Two Products AirGap |
| Key | Part No. | Description |
| 1 | 238100 | Strainer washer |
| 2 | 276800 | Swivel stem |
| 3 | 506502 | Swivel nut |
| 4 | 133000 | Branch tee |
| 5 | 10027700 | 3/8" nipple |
| 6 | 323338 | Pipe plug, brass |
| 7 | 10080320 | Ball valve |
| 8 | 10091989 | Adapter, APAD |
| 9 | 161 | Eductor retrofit kit (includes eductor, inner discharge tube and outer discharge tube) |
| 10 | 10077500 | 90º Angle hose barb |
| 11 | 10027209 | Metering tip (kit) |
| 12 | 500814 | Tubing, 1/4" x 14' |
| 13 | 509900 | Weight |
| 14 | 10089410 | Foot valve, Viton |
| 15 | 10070470 | Inner discharge tube |
| 16 | 10077310 | Outer discharge tube |
| Key | Part No. | Description |
| 1 | 238100 | Strainer washer |
| 2 | 276800 | Swivel stem |
| 3 | 506502 | Swivel nut |
| 4 | 133000 | Branch tee |
| 5 | 10027700 | 3/8" nipple |
| 6 | 323338 | Pipe plug, brass |
| 7 | 10080320 | Ball valve |
| 8 | 10091989 | Adapter, APAD |
| 9 | 291 | 3.5 GPM E-Gap Eductor Assy. |
| 10 | 10077500 | 90º Angle hose barb |
| 11 | 10027209 | Metering tip (kit) |
| 12 | 500814 | Tubing, 1/4" x 14' |
| 13 | 509900 | Weight |
| 14 | 10089410 | Foot valve, Viton |
| 15 | 90048495 | Discharge tube assembly |
SinkMaster Instruction Guide
Ready to get started?
Our experts are here to help. Tell us more about what you need
so we can connect you to the right Hydro experts.
Common Questions
Have a different question? Reach Out
Two different versions - both one and two products.
Both E-Gap and AirGap.
Yes.
Water enters the system at varying pressures. Water pressure is regulated at the eductor by the Accupro technology. The regulated water pressure creates a vacuum that draws chemical at the recommended rate that provides for a consistent and expected dilution.
Yes. Both E-Gap and AirGap eductor-based designs are approved.
