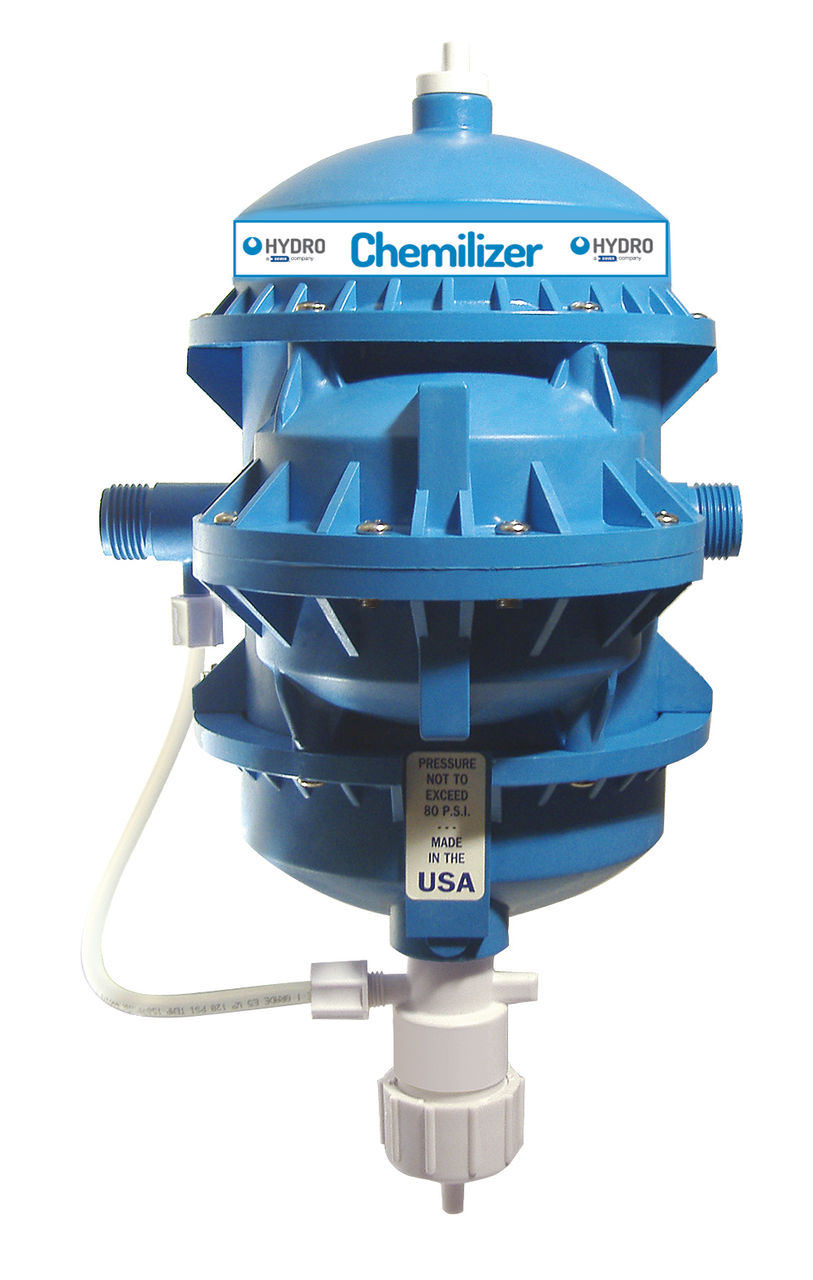

Chemilizer

Water-Driven Pump featuring diaphragm technology, dilution range (164:1 (0.6%) to 20:1), up to 11 GPM

The Chemilizer is a proportional liquid chemical injector that injects a precise amount of chemical in proportion to a volume of water. The Chemilizer is an industry-leading chemical injector that utilizes years of proven diaphragm technology. Powered by the existing water supply, the internal motor drives the chemical pump, injecting very precise amounts of chemical.

Applications

Nutrient Delivery Line Cleaning Solutions Chemical Delivery

Benifits One

Best choice of water-driven pump for use in hard water applications

Best choice of water-driven pump for use in low flow applications

Adjustable lower ends allow for multiple chemistries to be used with one unit reducing total cost of ownership

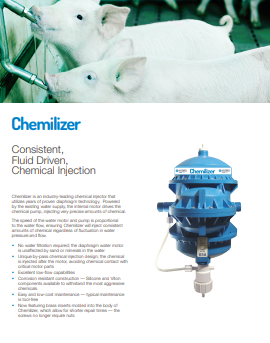

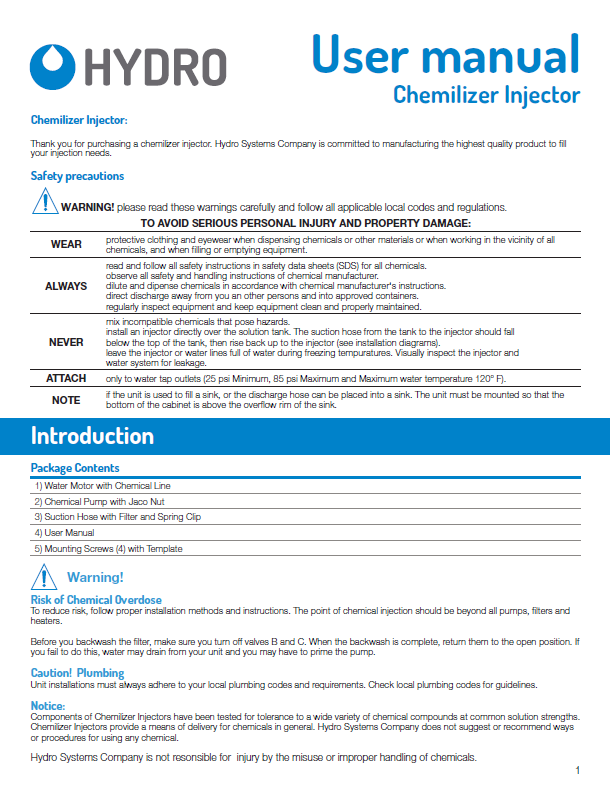

Chemilizer Resources

Everything you need all in one place

Best choice for use in hard water applications

The Chemilizer features diaphragm technology and is your best option when working with a low flow or tough water source. Pump pond and well water without the use of a filter resulting in the lower cost of ownership.

By-pass chemical injection design results in longer life

Most diaphragm-based water-driven pumps on the market today expose their motors to corrosive chemicals, damaging the motor and leading to costly repairs or replacements. With the by-pass chemical injection design, the motor is protected from the corrosive chemicals and lasts longer resulting in the lower cost of ownership.

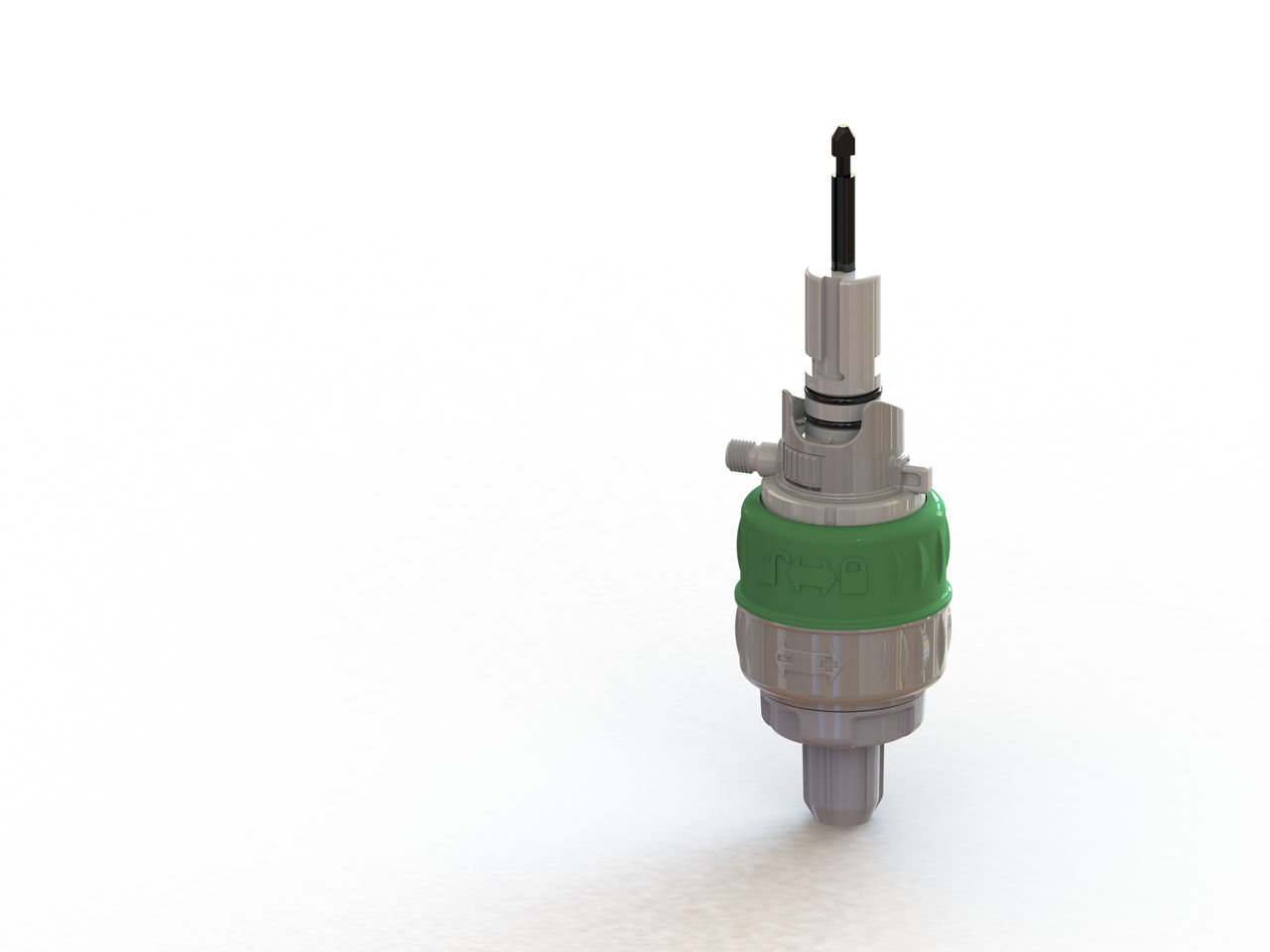

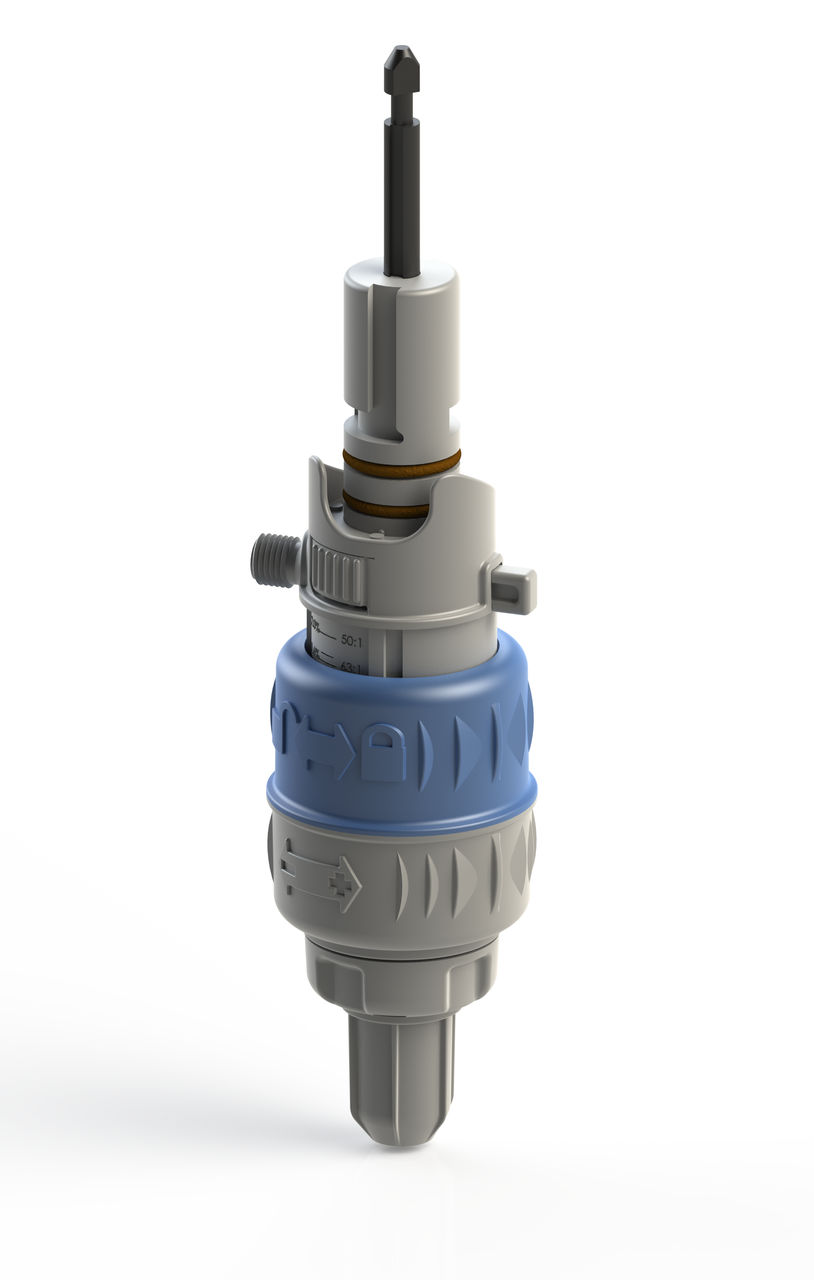

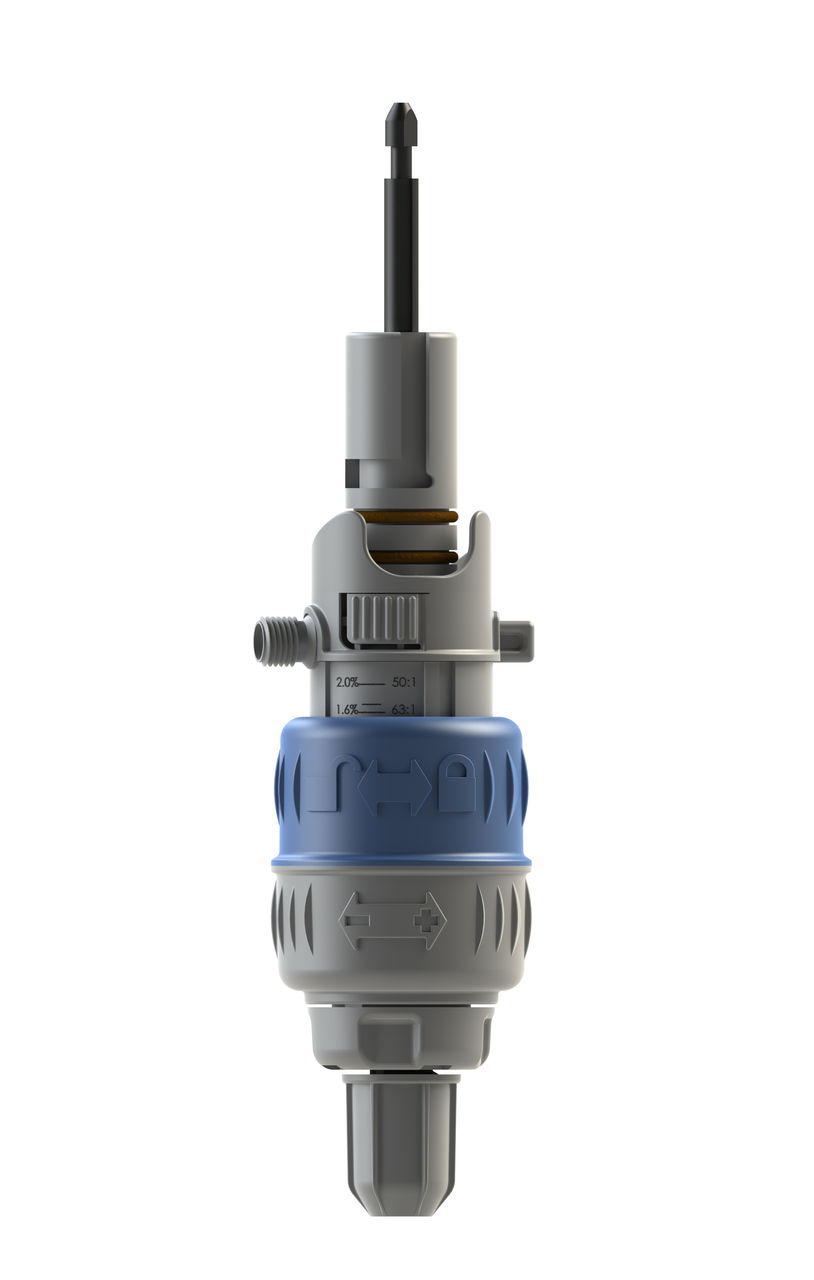

Adjustable lower ends are available

When multiple chemistries are required to be used, Chemilizer adjustable lower ends can be adjusted to accomodate different chemical dilution ratios. Whether chemical line cleaners, nutrients, or even animal medications, the same pump can be used resulting in the lower cost of ownership.

Model #Operating PressureFlow RateInjection Rate
CH9000-2093 - 85 psi 0.2 - 5.8 bar0.02 - 11 GPM 5 - 2500 L/hr.1:128 Fixed 0.78% Fixed
CH9000-2103 - 85 psi 0.2 - 5.8 bar0.02 - 11 GPM 5 - 2500 L/hr.1:100 Fixed 1.0% Fixed
CH9000-AV13 - 85 psi 0.2 - 5.8 bar0.02 - 11 GPM 5 - 2500 L/hr.20:1 - 64:1 1.6 - 5.0%
CH9000-AV23 - 85 psi 0.2 - 5.8 bar0.02 - 11 GPM 5 - 2500 L/hr.50:1 - 164:1 0.6 - 2.0%

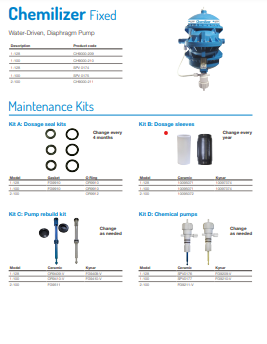

Mode Part Number
1-128CH9000-209
1-100CH9000-210
1-128SPV0174
1-100SPV0175
2-100CH9000-211

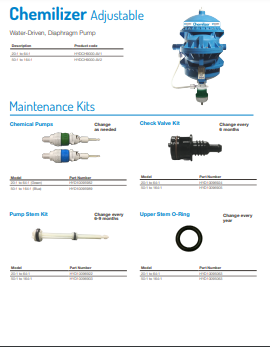

DescriptionProduct code
20:1 to 64:1HYDCH9000-AV1
50:1 to 164:1HYDCH9000-AV2

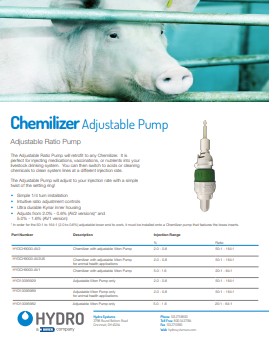

Part Number  Description  Injection Range
%Ratio
HYDCH9000-AV2Chemilizer with adjustable Viton Pump2.0 - 0.650:1 - 164:1
HYDCH9000-AV2USChemilizer with adjustable Viton Pump for animal health applications2.0 - 0.650:1 - 164:1
HYDCH9000-AV1Chemilizer with adjustable Viton Pump5.0 - 1.620:1 - 64:1
HYD10095929Adjustable Viton Pump only2.0 - 0.650:1 - 164:1
HYD10095989Adjustable Viton Pump only for animal health applications2.0 - 0.650:1 - 164:1
HYD10095982Adjustable Viton Pump only5.0 - 1.620:1 - 64:1

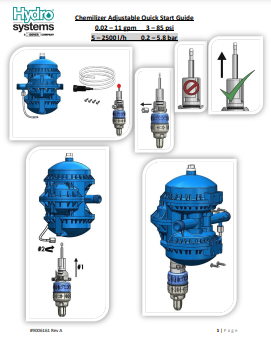

Watch the Chemilizer Adjustable Pump Instruction Guide

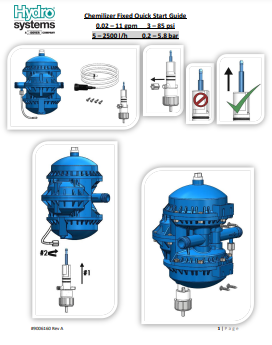

Watch the Chemilizer Fixed Pump maintenance video

Ready to get started?

Our experts are here to help. Tell us more about what you need
so we can connect you to the right Hydro experts.

I am ready to buy

I have a product question

I need technical
support

General Inquiry

I am ready to buy

I have a product question

I need technical
support

General Inquiry

Common Questions

Have a different question? Reach Out

11 GPM or 2500 L/hr.

1,500 cP.

85 psi or 5.8 bar.

164:1 and 0.6%.

There are data sheets on our website that outline the maintenance parts for each water-driven pump.
