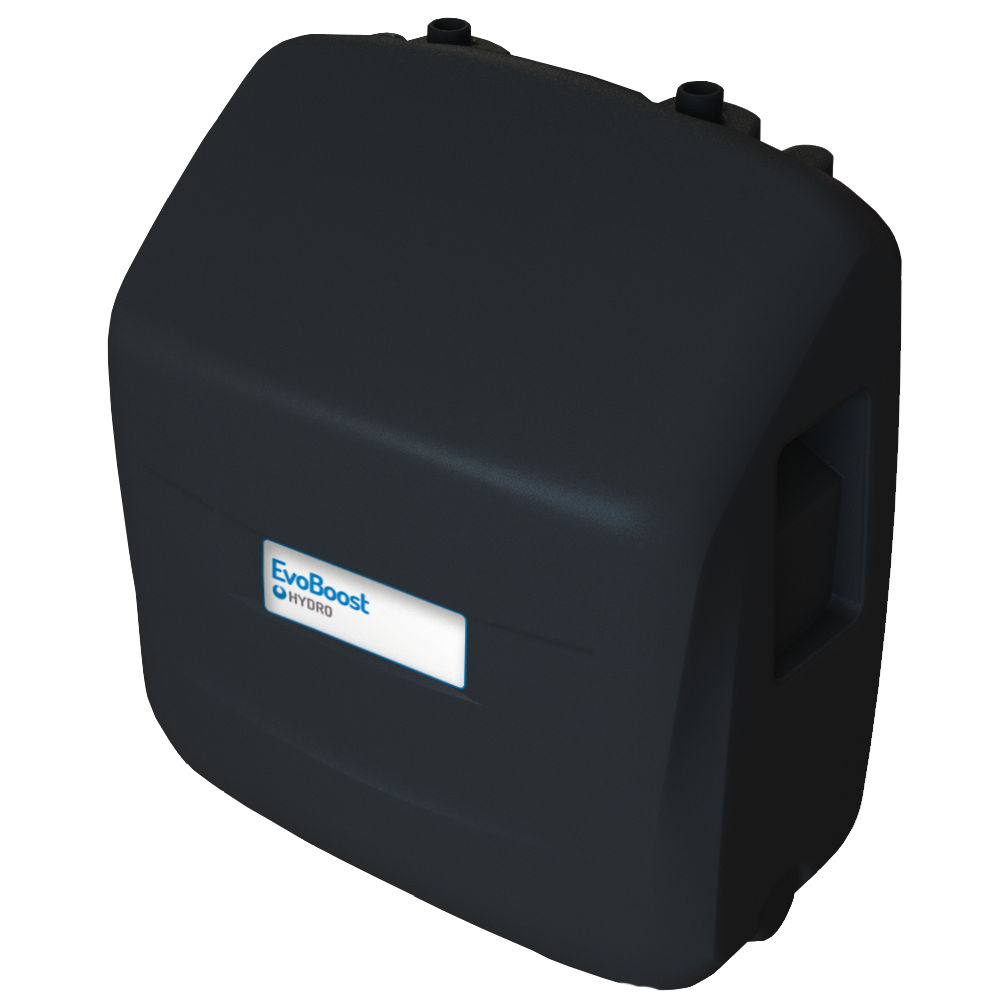

EvoBoost
Accessory for sites using venturi dispensers with low water pressure
The EvoBoost, as part of Hydro’s laundry solution, is equipped with a powerful and reliable diaphragm pump. Providing a flow rate of 1.4 GPM (5.2 LPM), it eliminates the complications associated with low water pressure, for up to three low flow EvoClean units, or one high flow EvoClean unit. The EvoBoost is designed specifically to fit, neatly, into typical OPL operations, while still being versatile enough to be paired with any venturi dispenser.
Markets
Applications
Filling Large Tanks Filling Mop Buckets Filling Scrubbers Filling Spray Bottles On-Premise Filling Sinks Cutting FluidDilution Coolant Dilution Lubricant Dilution Filling Totes & Drums
Eliminates accuracy challenges with venturi dispensers when site water pressure is low.
Services up to 3 LF EvoClean dispsensers from a single unit.
Provides an air gap (backflow element) that meets ASME requirements.

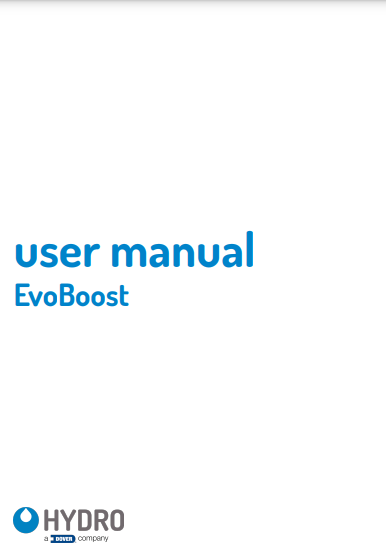

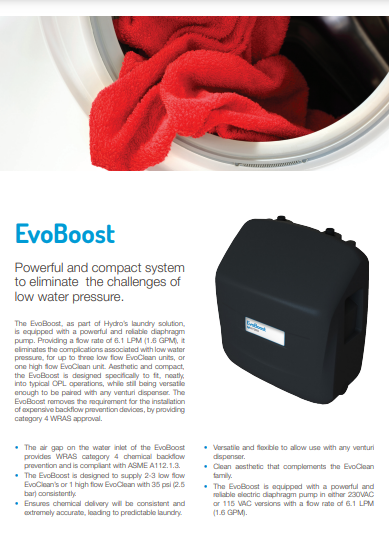

EvoBoost Resources
Everything you need all in one place
Eliminates accuracy challenges when site has low water pressure
The EvoBoost is equipped with a powerful and reliable electric diaphragm pump in either 230 VAC or 115 VAC versions with a low rate of 1.4 GPM (5.2 LPM).
Services up to three low flow EvoClean dispensers from a single dispenser
The EvoBoost is designed to supply two to three low flow EvoClean units or one high flow unit with 32 psi (2.2 bar) consistently.
Features air gap backflow presention
The air gap on the water inlet of the EvoBoost provides WRAS category 4 chemical backflow prevention and is compliant with ASME A112.1.3.
| MODEL | INLET FITTING | OUTLET FITTING | VOLTAGE |
| EVB1561115VG | 3/4GH, female | 3/4GH, female | 115 VAC |
| EVB1561230VB | 3/4BSP, male | 3/4BSP, male | 230 VAC |
No files found.
Eliminates accuracy challenges when site has low water pressure
The EvoBoost is equipped with a powerful and reliable electric diaphragm pump in either 230 VAC or 115 VAC versions with a low rate of 1.4 GPM (5.2 LPM).
Services up to three low flow EvoClean dispensers from a single dispenser
The EvoBoost is designed to supply two to three low flow EvoClean units or one high flow unit with 32 psi (2.2 bar) consistently.
Features air gap backflow presention
The air gap on the water inlet of the EvoBoost provides WRAS category 4 chemical backflow prevention and is compliant with ASME A112.1.3.
| MODEL | INLET FITTING | OUTLET FITTING | VOLTAGE |
| EVB1561115VG | 3/4GH, female | 3/4GH, female | 115 VAC |
| EVB1561230VB | 3/4BSP, male | 3/4BSP, male | 230 VAC |
No files found.
Ready to get started?
Our experts are here to help. Tell us more about what you need
so we can connect you to the right Hydro experts.
Common Questions
Have a different question? Reach Out
EvoBoost can operate 3 LF EvoCleans or 1 HF
15L or 4 Gallons
There is a float valve that automatically fills the EvoBoost to a preset level
The electric diaphragm pump in the Evoboost is activated by a pressure switch that detects when pressure drops below a set point (e.g. when an EvoClean is operating).
Please check the locator associated with the Hydro website.
