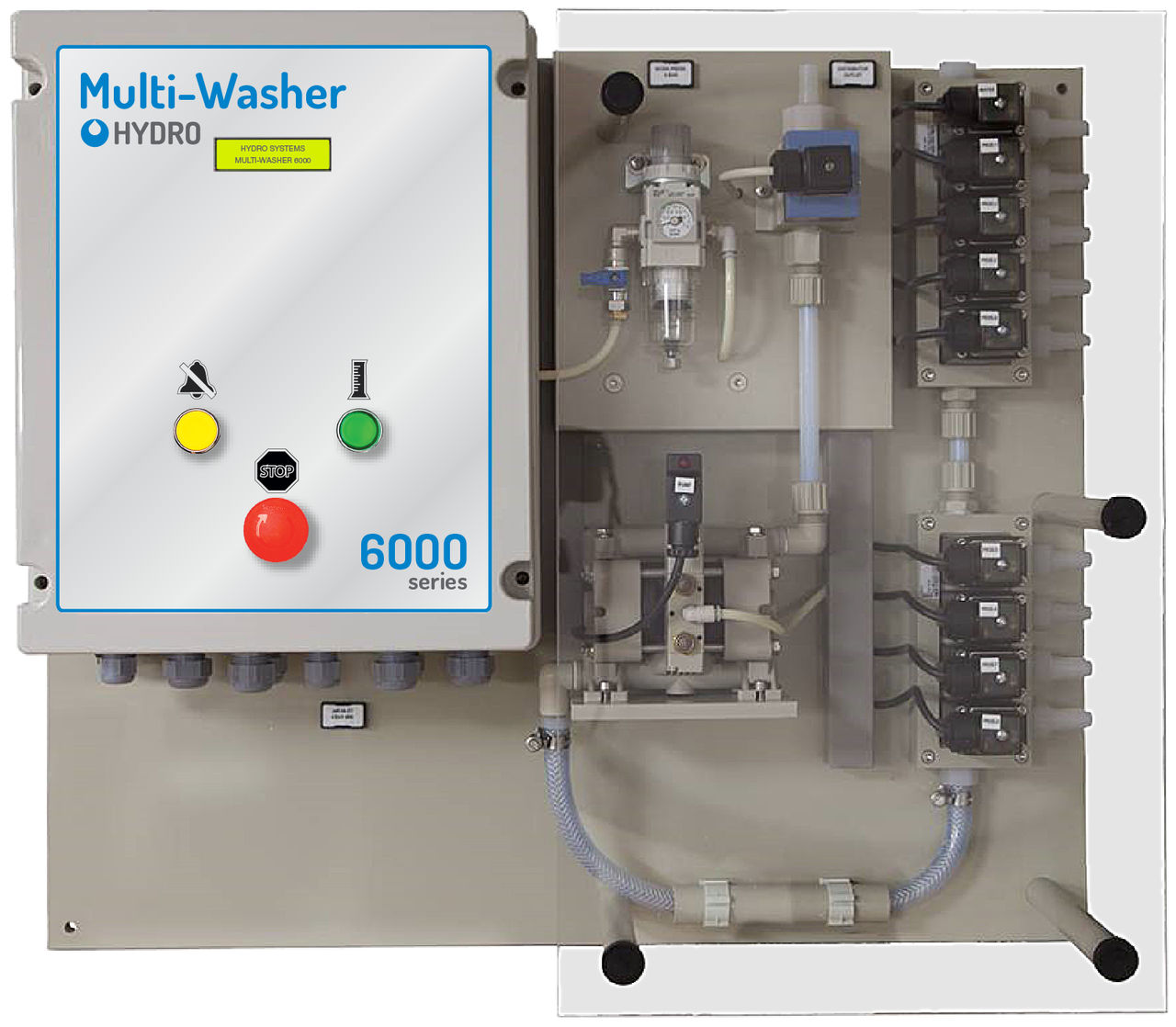

Central Dosing System, On-Premise Laundry, Multi-Washer for 6 washers & 8 chemistries
Designed to manage chemical dispensing for medium and large on-premise laundries, the Multi-Washer 6000 Series offers reliable dosing that can support up to 6 washers and dose up to 8 products within a single system. Flexible and easy to configure, the Multi-Washer 6000 Series utilizes an accurate flowmeter for precise control to reduce rewash and prevent costly overdosing.
Markets
Applications
On-Premise Commercial Industrial Automatic Chemical Delivery
A single system that accurately doses up to 8 products for 6 medium washers.
Proof of delivery using an accurate flowmeter
Real-time metrics and remote configuration capability through Hydro Connect.
Proactively view alarms to rapidly eliminate abnormal conditions that drive profit loss.
Eliminate the use of out-of-date paper logs to document the weight or number of loads run in your facility.
Simplify and improve the accuracy of your billing procedures with metered usage reports on chemical product and formula.
Quickly access a snapshot of the chemical cost by formula to actively manage and improve unprofitable formulas or accounts.
Eliminate hours of data manipulation and analysis. For a minimal charge, a Hydro expert will review the monthly data and provide recommendations to help reduce rewash and optimize cleaning results.
View washer status, alerts and key productivity metrics in real-time to proactively pinpoint inefficiencies while reducing rewash.
Model Numbers | Multi-Washer 6000 Series Electromagnetic 1-Channel | Multi-Washer 6000 Series Pneumatic 1-Channel |
HYDSPD0085 - 4 Washers | HYDSPD0083 - 4 Washers | |
HYDSPD0086 - 6 Washers | HYDSPD0084 - 6 Washers |

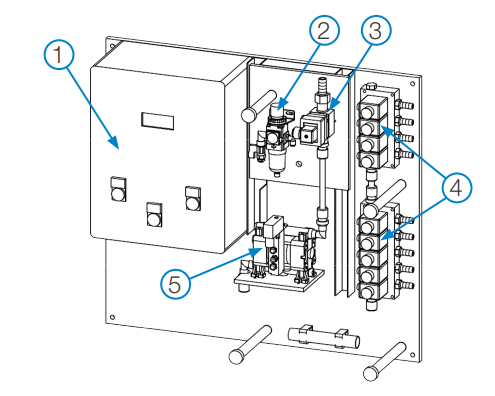

Key | Description |
1 | PCB Control Cabinet |
2 | Air Pressure Regulator (Pneumatic Pump Units Only) |
3 | Flow Meter |
4 | Electronic Valves |
5 | Pneumatic or Electromagnetic Pump |

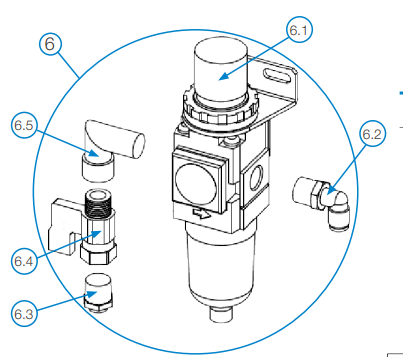

Key | Part No. | Description |
6 | HYD4810ACQ2W063 | Assembly, Air Pressure Regulator |
6.1 | HYD48101662722 | Regulator/Filter/Gauge, 1/4”, manual purge |
6.2 | HYD48101120622 | Elbow Air Fitting 1/4 “T6 |
6.3 | HYD4810KQ2H0602AS | Straight connector for air 1/4”-T6 |
6.4 | HYD2953216559 | Ball valve 3097 MH 1/4” |
6.5 | HYD4810221414U | Conic brass elbow M/F 1/4” |

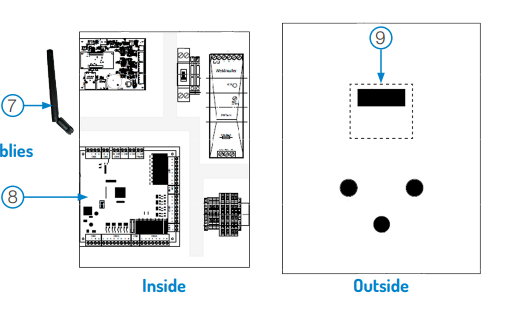

Key | Part No. | Description |
7 | HYD2721ANT001 | Wi-Fi external antenna 2.4 GHz with cable, SMA RP Female B/H |
8 | HYD1161M6P1EV | I/O Board for Laundrytec Micro Controller |
9 | HYD1161M6P1DV | Display Board for Laundrytec Micro Controller (inside cabinet door) |

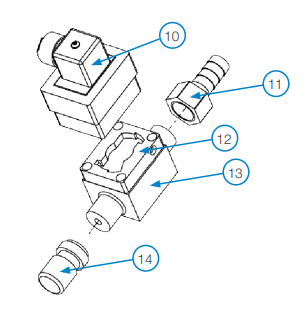

Key | Part No. | Description |
10 | HYD021713020002 | Flow meter 8030, 24VDC, PNP |
11 | HYD54808400299 | PVDF, Output Hose Barb, 1/2” |
12 | HYD02171432300 | PP Turbine + FPM joints for S030 flux sensor |
13 | HYD0217297301490 | Flow Meter Fitting PP + Turbine |
14 | HYD1318100FG4812PP | Straight connector, S1A PP, T10/12 G1/2” H |

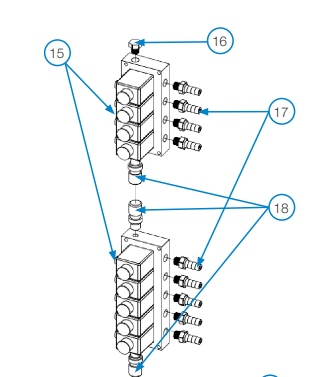

Key | Part No. | Description |
15 | HYD0217297301140 | 3-Valve Block, Ev Type 124, PP (not shown) |
HYD0217297301141 | 4-Valve Block, Ev Type 124, PP | |
HYD0217297301142 | 5-Valve Block, Ev Type 124, PP | |
16 | HYD54818400238 | PVDF cap, 3/8” with VITON O-Ring |
17 | HYD54818400298 | PVDF Barb Fitting 3/8”xT13 w/ O-Ring |
18 | HYD1318MG4838PP | Straight connector, S1A PP, T10/12 G3/8” M |
Key | Part No. | Description |
19 | HYD111310P7 | Duotek Pneumatic pump AF 0007, 1/4”G |
20 | HYD4810SS5Y5Q2W514 | 5-way air control valve for Duotek pump |
21 | HYD1318G4814PP | Elbow fitting, PP, G1/4 M, 10x12 |
Key | Part No. | Description |
22 | HYD60121ATBX4RJ | BX ATHENA 4 Electromagnetic Pump, Red, 0.25 GPM |
23 | HYD1318FG4834PP | Straight connector PP G3/4 F T10/12 |

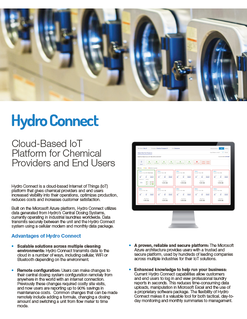

Hydro Connect – Chemical Admin
Hydro Connect – User Reports
Hydro Connect – Remote Configuration
Hydro Connect – Chemical Admin – Spanish
Hydro Connect – User Reports – Spanish
Hydro Connect – Remote Configuration – Spanish
MW video
Proactively view alarms to rapidly eliminate abnormal conditions that drive profit loss.
Eliminate the use of out-of-date paper logs to document the weight or number of loads run in your facility.
Simplify and improve the accuracy of your billing procedures with metered usage reports on chemical product and formula.
Quickly access a snapshot of the chemical cost by formula to actively manage and improve unprofitable formulas or accounts.
Eliminate hours of data manipulation and analysis. For a minimal charge, a Hydro expert will review the monthly data and provide recommendations to help reduce rewash and optimize cleaning results.
View washer status, alerts and key productivity metrics in real-time to proactively pinpoint inefficiencies while reducing rewash.
Model Numbers | Multi-Washer 6000 Series Electromagnetic 1-Channel | Multi-Washer 6000 Series Pneumatic 1-Channel |
HYDSPD0085 - 4 Washers | HYDSPD0083 - 4 Washers | |
HYDSPD0086 - 6 Washers | HYDSPD0084 - 6 Washers |
Key | Description |
1 | PCB Control Cabinet |
2 | Air Pressure Regulator (Pneumatic Pump Units Only) |
3 | Flow Meter |
4 | Electronic Valves |
5 | Pneumatic or Electromagnetic Pump |
Key | Part No. | Description |
6 | HYD4810ACQ2W063 | Assembly, Air Pressure Regulator |
6.1 | HYD48101662722 | Regulator/Filter/Gauge, 1/4”, manual purge |
6.2 | HYD48101120622 | Elbow Air Fitting 1/4 “T6 |
6.3 | HYD4810KQ2H0602AS | Straight connector for air 1/4”-T6 |
6.4 | HYD2953216559 | Ball valve 3097 MH 1/4” |
6.5 | HYD4810221414U | Conic brass elbow M/F 1/4” |
Key | Part No. | Description |
7 | HYD2721ANT001 | Wi-Fi external antenna 2.4 GHz with cable, SMA RP Female B/H |
8 | HYD1161M6P1EV | I/O Board for Laundrytec Micro Controller |
9 | HYD1161M6P1DV | Display Board for Laundrytec Micro Controller (inside cabinet door) |
Key | Part No. | Description |
10 | HYD021713020002 | Flow meter 8030, 24VDC, PNP |
11 | HYD54808400299 | PVDF, Output Hose Barb, 1/2” |
12 | HYD02171432300 | PP Turbine + FPM joints for S030 flux sensor |
13 | HYD0217297301490 | Flow Meter Fitting PP + Turbine |
14 | HYD1318100FG4812PP | Straight connector, S1A PP, T10/12 G1/2” H |
Key | Part No. | Description |
15 | HYD0217297301140 | 3-Valve Block, Ev Type 124, PP (not shown) |
HYD0217297301141 | 4-Valve Block, Ev Type 124, PP | |
HYD0217297301142 | 5-Valve Block, Ev Type 124, PP | |
16 | HYD54818400238 | PVDF cap, 3/8” with VITON O-Ring |
17 | HYD54818400298 | PVDF Barb Fitting 3/8”xT13 w/ O-Ring |
18 | HYD1318MG4838PP | Straight connector, S1A PP, T10/12 G3/8” M |
Key | Part No. | Description |
19 | HYD111310P7 | Duotek Pneumatic pump AF 0007, 1/4”G |
20 | HYD4810SS5Y5Q2W514 | 5-way air control valve for Duotek pump |
21 | HYD1318G4814PP | Elbow fitting, PP, G1/4 M, 10x12 |
Key | Part No. | Description |
22 | HYD60121ATBX4RJ | BX ATHENA 4 Electromagnetic Pump, Red, 0.25 GPM |
23 | HYD1318FG4834PP | Straight connector PP G3/4 F T10/12 |
Hydro Connect – Chemical Admin
Hydro Connect – User Reports
Hydro Connect – Remote Configuration
Hydro Connect – Chemical Admin – Spanish
Hydro Connect – User Reports – Spanish
Hydro Connect – Remote Configuration – Spanish
MW video
Have a different question? Reach Out
It can support 6 washers with 8 products standard, uses an AODD pump, and a local web server for local configuration
Yes, Hydro Connect comes standard and enables real-time reporting and remote configuration changes
No, in OPL sites, distances to the washer are less and air assist is therefore not needed or supported on the MW-6000.
Yes, every channel has a paddlewheel or elliptical gear flowmeter to accurately measure and control dosing.
MW units are purchased through Hydro. Please contact sales support.
