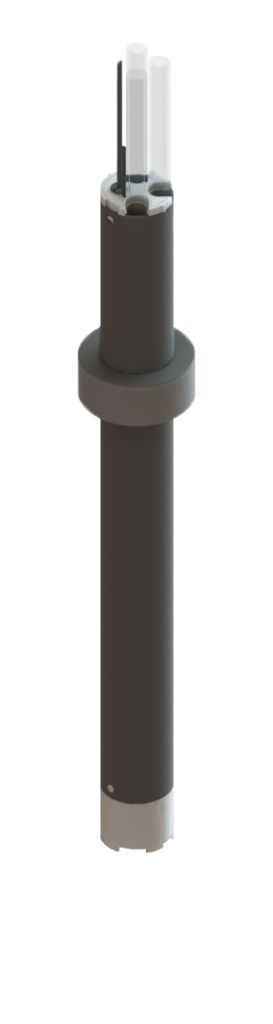

Depletion Wands
Accessory enabling simple connection between a chemical drum and up to 3 dispensers.

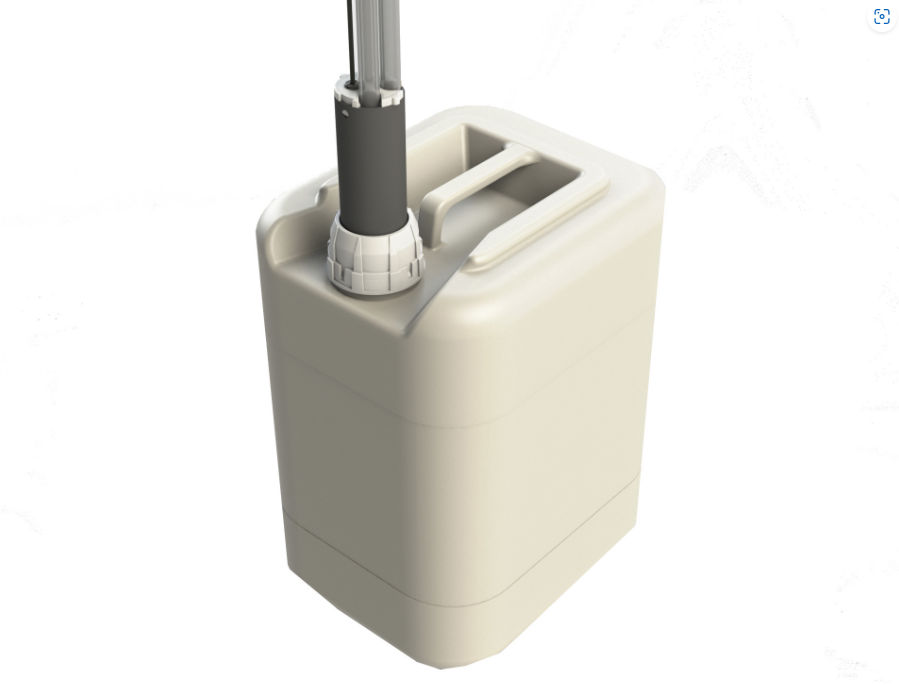

Depletion wands simplify laundry installations by allowing quick connections between a single chemical drum and up to three laundry dispensers. In addition to limiting chemical spills and increasing the efficiency of replenishing product drums, the depletion wands come equipped with a float switch that can detect and alert users to costly out-of-product conditions.
Simplify the connection of multiple dispensers (up to 3) to the chemical containers.
Detect and prevent costly out of product conditions.
Flexible portfolio to cover most common global chemical container sizes.
Depletion Wands Resources
Everything you need all in one place
Application simplicity
Simplify installs and the process of changing out empty chemical containers with a 3-way depletion wand
Out of product notification
Detect costly out of product conditions with a built-in low level float sensor
Safe operation
Maximize operator safety utilizing a spring on each tube and strain relief to prevent operator tube disconnection while in use
Full size range
Full range of sizes to fit different chemical containers, including 10L, 20L, 60L & 200L. Suitable for laundries of all sizes
Model numbers
| Description | Diameter (mm) | Length (mm) | Drum Size (L) / (G) | Valve material |
| HYDDW10L380380D3AFF | 38 | 380 | 10 / 2.5 | Aflas |
| HYDDW20L380500D3AFF | 38 | 500 | 20 / 5 | Aflas |
| HYDDW20L0500D3EPF | 48 | 500 | 20 / 5 | EP |
| HYDDW60L0650D3EPF | 48 | 650 | 60 / 16 | EP |
| HYDDW200L1016D3EPF | 48 | 1016 | 200 / 53 | EP |
| Part Number | Description | Pack size |
| HYD10099107 | Umbrella valve cartridge kit (EPDM) | 3 |
| HYD10099108 | Dust cap kit | 5 |
No files found.
Application simplicity
Simplify installs and the process of changing out empty chemical containers with a 3-way depletion wand
Out of product notification
Detect costly out of product conditions with a built-in low level float sensor
Safe operation
Maximize operator safety utilizing a spring on each tube and strain relief to prevent operator tube disconnection while in use
Full size range
Full range of sizes to fit different chemical containers, including 10L, 20L, 60L & 200L. Suitable for laundries of all sizes
Model numbers
| Description | Diameter (mm) | Length (mm) | Drum Size (L) / (G) | Valve material |
| HYDDW10L380380D3AFF | 38 | 380 | 10 / 2.5 | Aflas |
| HYDDW20L380500D3AFF | 38 | 500 | 20 / 5 | Aflas |
| HYDDW20L0500D3EPF | 48 | 500 | 20 / 5 | EP |
| HYDDW60L0650D3EPF | 48 | 650 | 60 / 16 | EP |
| HYDDW200L1016D3EPF | 48 | 1016 | 200 / 53 | EP |
| Part Number | Description | Pack size |
| HYD10099107 | Umbrella valve cartridge kit (EPDM) | 3 |
| HYD10099108 | Dust cap kit | 5 |
No files found.
Ready to get started?
Our experts are here to help. Tell us more about what you need
so we can connect you to the right Hydro experts.
Common Questions
Have a different question? Reach Out
They use a simple float switch (2 wires) that is emersed in the chemical.
Wands are available for 10L, 20L, 60L and 200L chemical containers with AFLAS or EPDM check valve materials depending on what chemical is used.
Depletion wands allow multiple dispensers (up to 3) to cleanly be connected to a chemical drum, simplifying install and product changeovers. The depletion wand also uses a float switch to detect out of product conditions.
Hydro sells a low level alarm that gives visual and audible indication of which product is out. The low level alarm can accommodate up to 8 depletion wands.
Please check the locator associated with the Hydro website.
