AquaBlend

Water-Driven Pump, dilution range (500:1 (0.2%) to 20:1 (5%)), up to 11 GPM

The AquaBlend water-driven pump is specifically engineered to inject chemistry into water in most animal health and horticulture environments for delivery to animals or crops. This long lasting pump is available with both adjustable and fixed lower end configurations and features tool free maintenance.

Applications

Chemical Delivery Line Cleaning Solutions

Lasts up to 12 Million Cycles Before Maintainance

Toolfree Maintenance Reduces Repair Time by 50%

Adjustable Lower Ends Allow for Multiple Chemistries to Be Used With One Unit Reducing Total Cost of Ownership

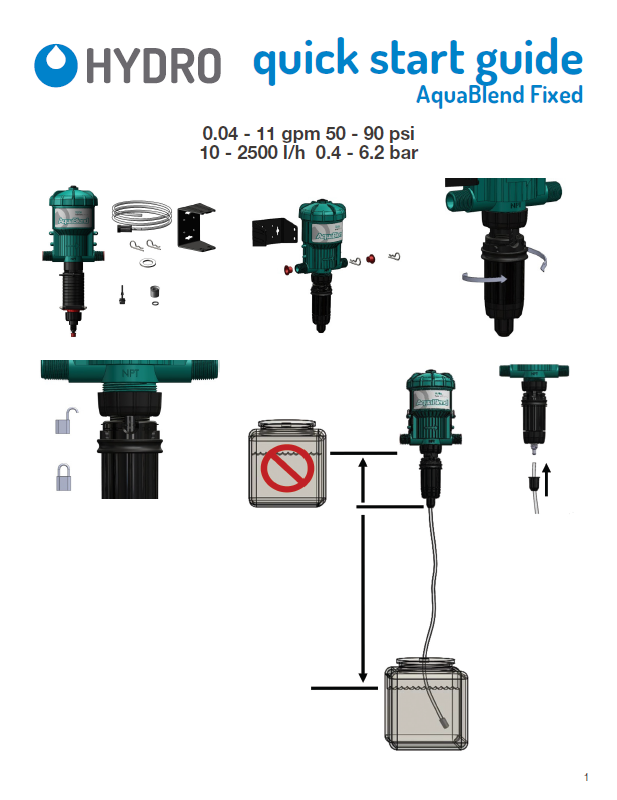

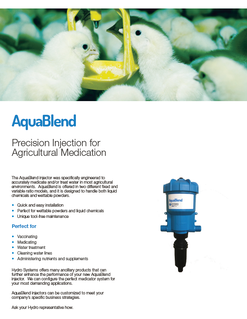

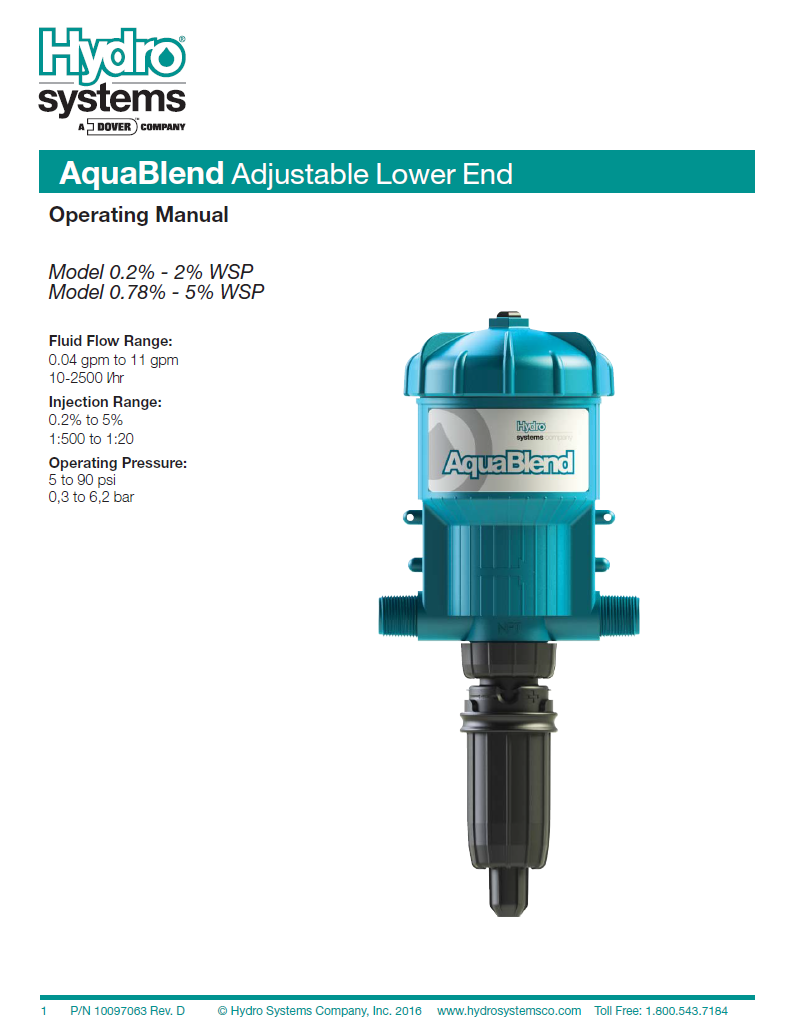

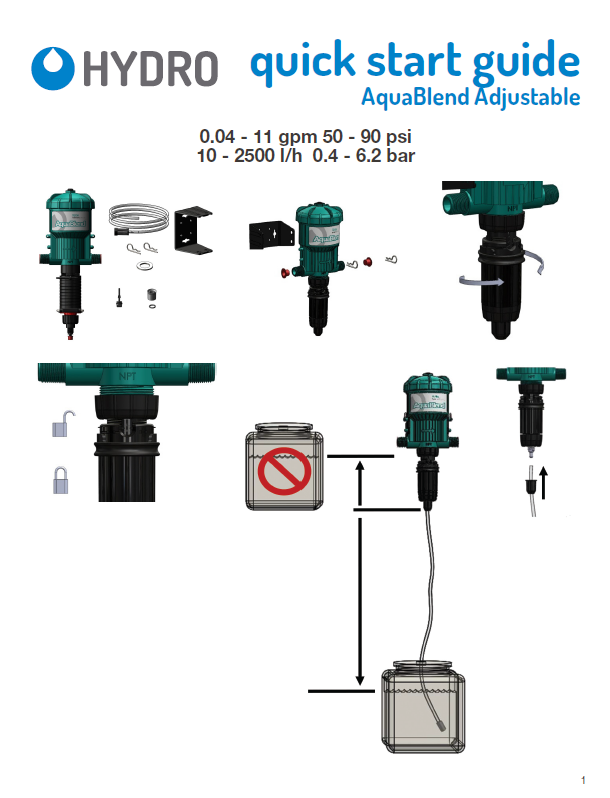

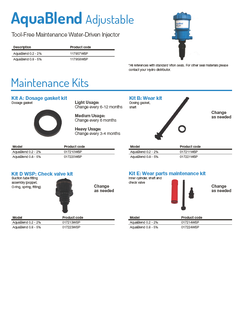

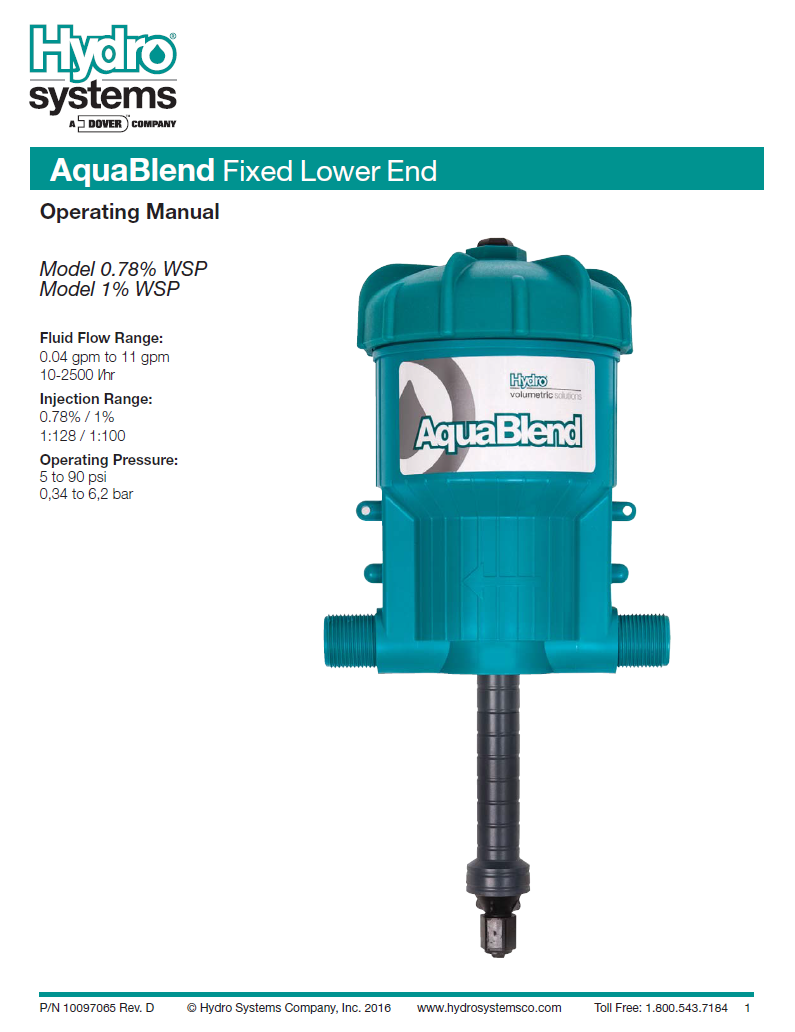

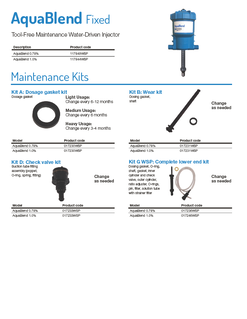

AquaBlend Resources

Everything you need all in one place

Longer lasting life

Not only is the AquaBlend water-driven pump specifically engineered to accurately inject chemistry into water, it lasts up to 12 million cycles before maintenance is required.

Tool-free maintenance is a standard feature

AquaBlend can be repaired without the need for tools. This water-driven pump can be repaired up to 50% less time compared to other water-driven pumps.

The same pump can be used with multiple lower ends

The ability to use the same pump with different lower ends allows the user to switch between different dilution ratios without having to buy a new pump.

AquaBlend ModelPart #NPT/BSPFlow RateInjection RateOperating Pressure
1:128 Fixed

117849WSP/

117859WSP

0.04 - 11 GPM

10 - 2500 L/hr

1:128 0.78%5 - 90 psi 0.34 - 6.2 bar

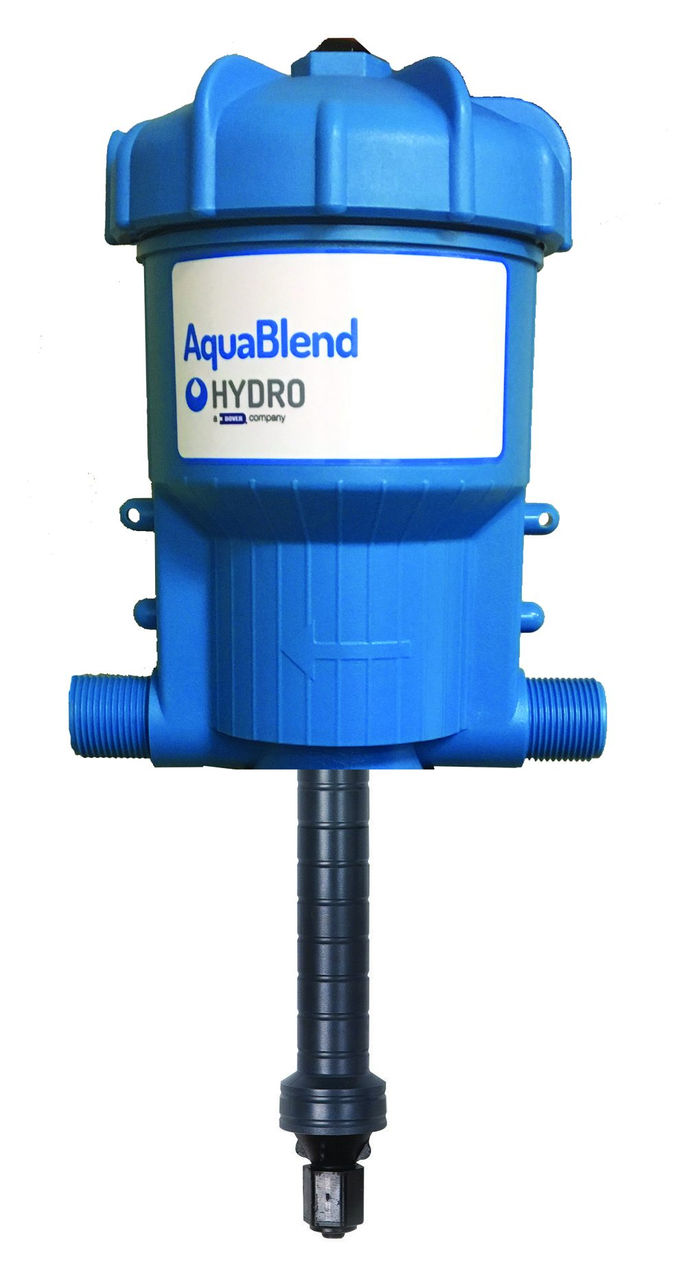

1:100 Fixed

117844WSP/

117854WSP

0.04 - 11 GPM

10 - 2500 L/hr.

1:100 1.0%5 - 90 psi 0.34 - 6.2 bar

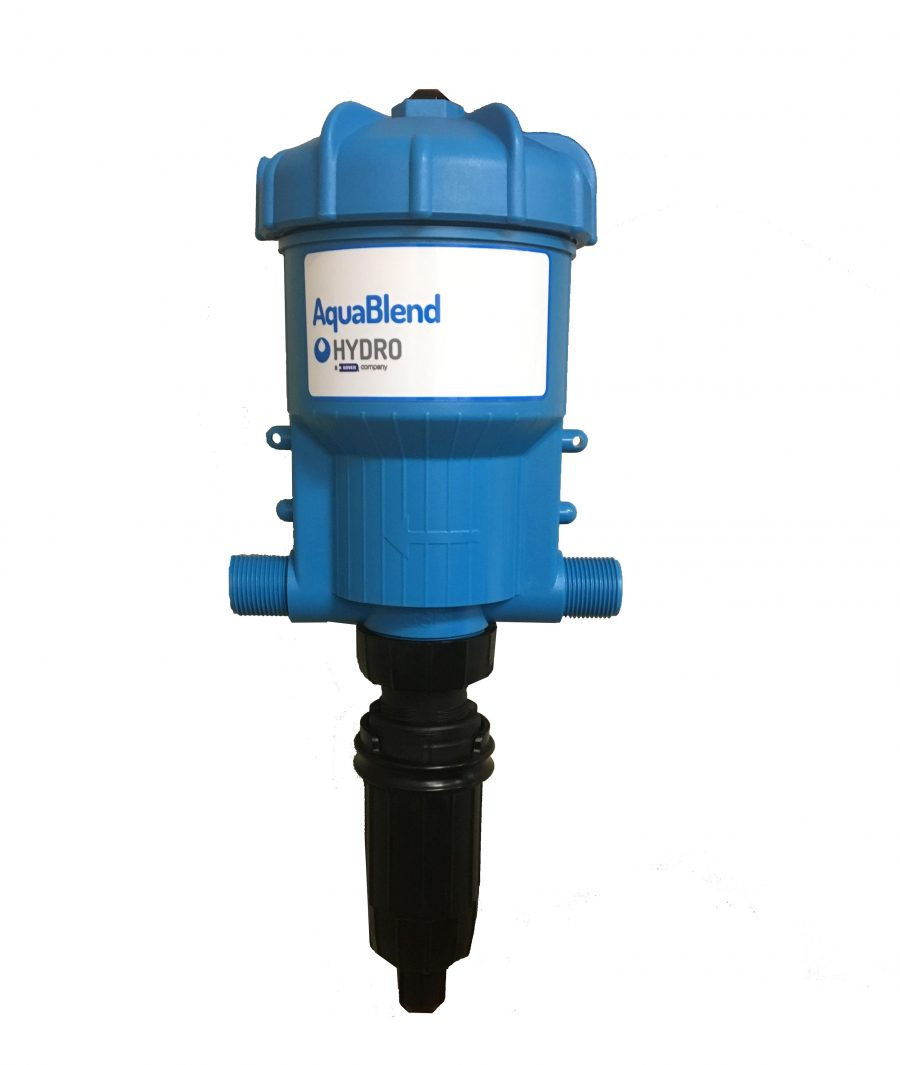

0.2 - 2%

117947WSP/

117957WSP

0.04 - 11 GPM

10 - 2500 L/hr

1:500 - 1:50 0.2 - 2%5 - 90 psi 0.4 - 6.2 bar
0.8 - 5%

117948WSP/

117958WSP

0.04 - 11 GPM

10 - 2500 L/hr.

1:128 - 1:20 0.8 - 5%5 - 90 psi 0.4 - 6.2 bar

AquaBlend Maintenance Video

Ready to get started?

Our experts are here to help. Tell us more about what you need
so we can connect you to the right Hydro experts.

I am ready to buy

I have a product question

I need technical
support

General Inquiry

I am ready to buy

I have a product question

I need technical
support

General Inquiry

Common Questions

Have a different question? Reach Out

In animal health, AquaBlend is commonly used for vaccinations, medications, and cleaning water lines just to name three.

1:500 or 0.2%.

90 psi or 6.2 bar.

100 degrees F. or 38 degrees C.

11 GPM or 2500 l/hr.
