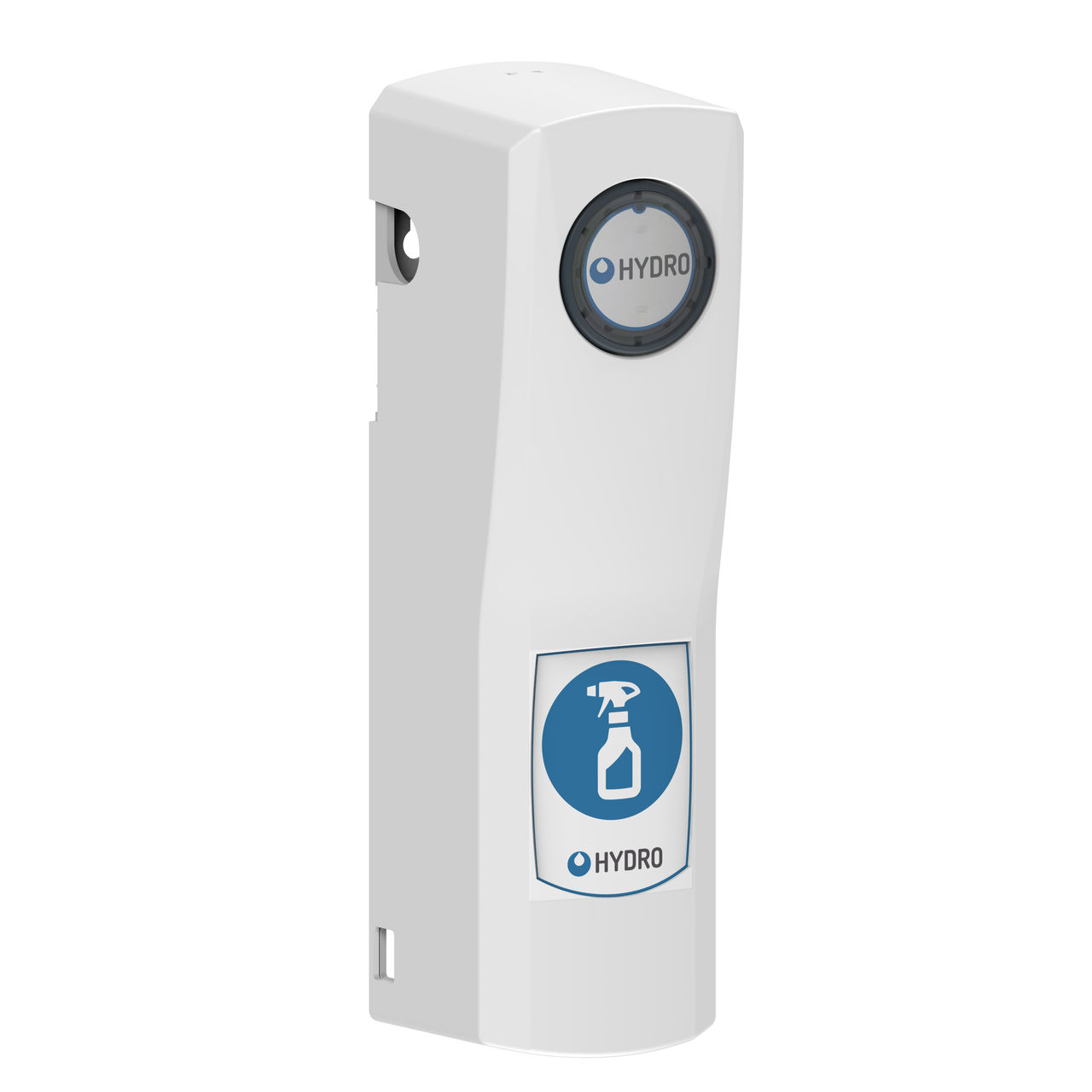

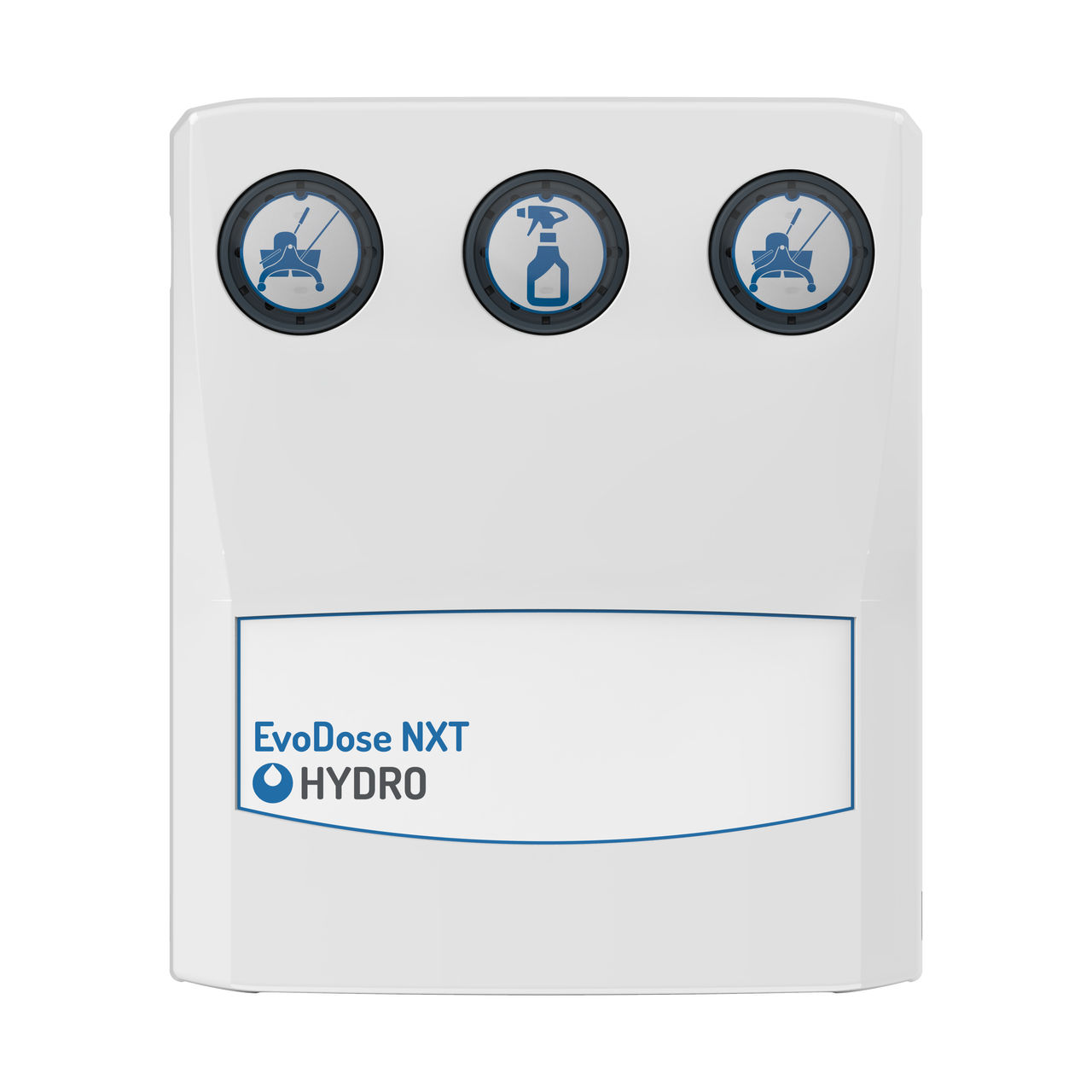

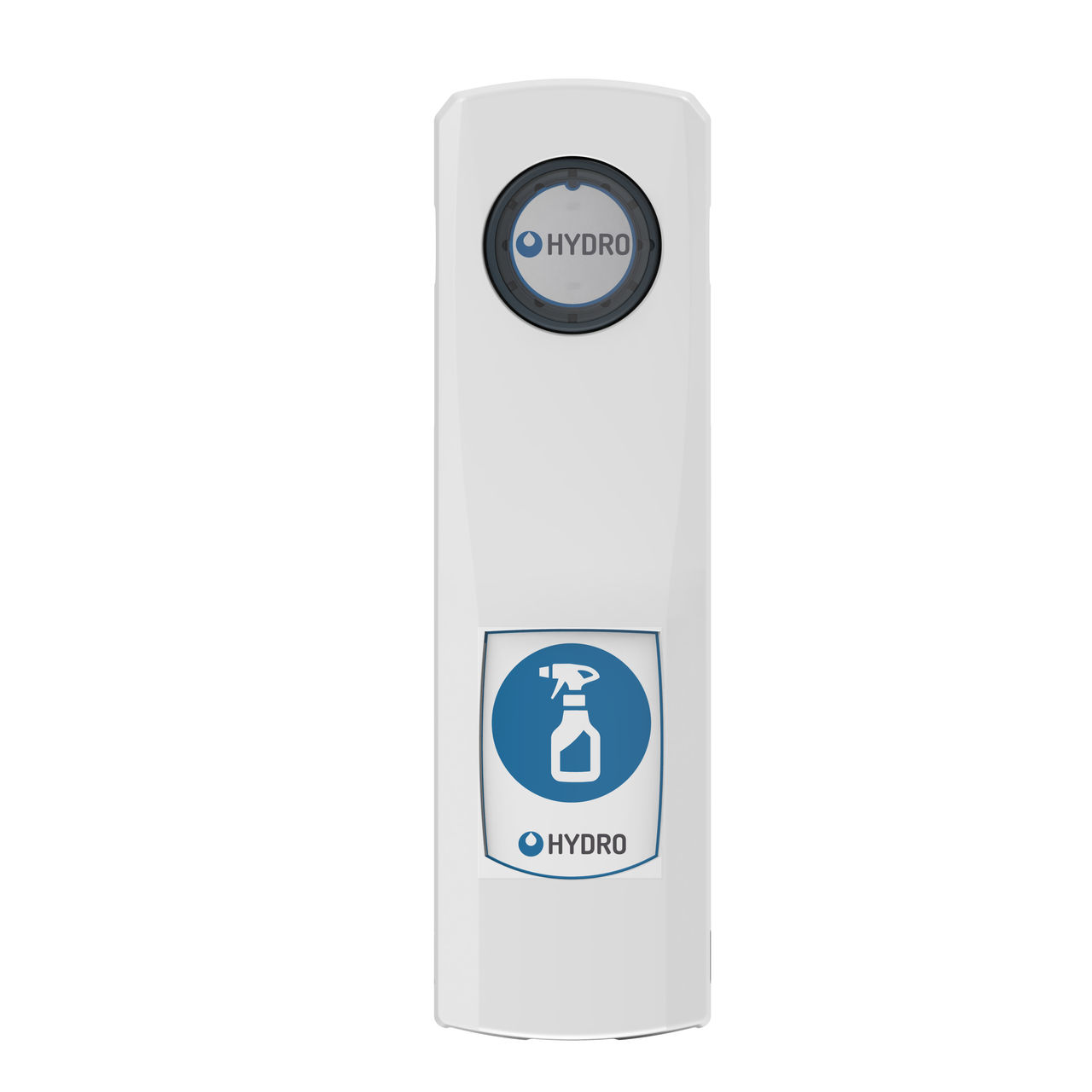

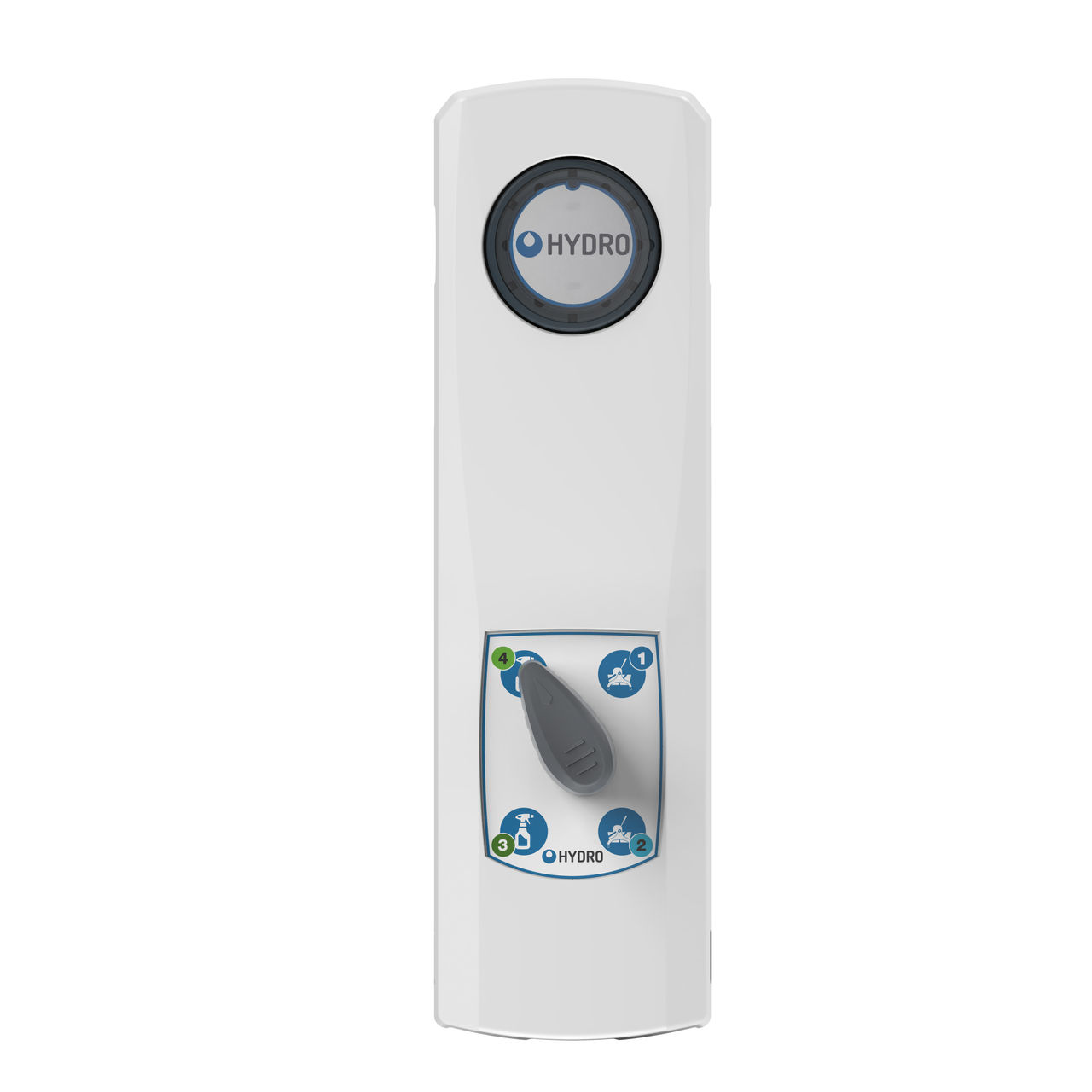

    EvoDose NXT

    Venturi Dispenser, wall mounted, Up to 4 chemistries w/ 1 Dispenser

    As the only dispenser on the market meeting the most stringent European water regulations, the EvoDose NXT helps prevent your water system from being contaminated as a result of the backflow of chemicals. The newest innovation is our EvoDose product that features pressure regulation technology and enables a 95% accurate dilution for the cleaning and sanitization of numerous applications where you need a confident clean.

    Our EvoDose is designed to comply with the EN1717 water regulations, which prevents the contamination of potable water systems, making it a safe and reliable choice for diluting chemicals in industrial and commercial settings.

    Available in EU only

    Applications

    Filling Mop Buckets Filling Spray Bottels Filling Sinks

    Meets European Water Regulations (WRAS, DVGW, etc.)

    Features Pressure Regulation Technology That Reduces Chemical Consumption by 20%

    Simplistic, three-part construction saves time during maintenance and reduces spare parts inventory.

    EvoDose Resources

    Everything you need all in one place

    Accuracy matters

    EvoDose NXT features press regulation technology and enables 95% accurate dilution rate for the cleaning adn sanitation of kitchens, hotels, hospitals, schools, and numerous other applications where you need a confident clean.

    Meets European water regulations

    EvoDose NXT meets stringent European water regulation standards to prevent backflow and contamination of drinking water systems.

    Sleek, small profile designed with users in mind

    EvoDose NXT has a slim profile, small footprint, and easy to clean surface. It also features a single-touch, locking button for quick fill and multitasking needs.

    Simplified installation and maintenance

    Three main components allow for fewer parts to stock and maintain, while a modular design ensures easy daisy chaining with no need for additional accessories.

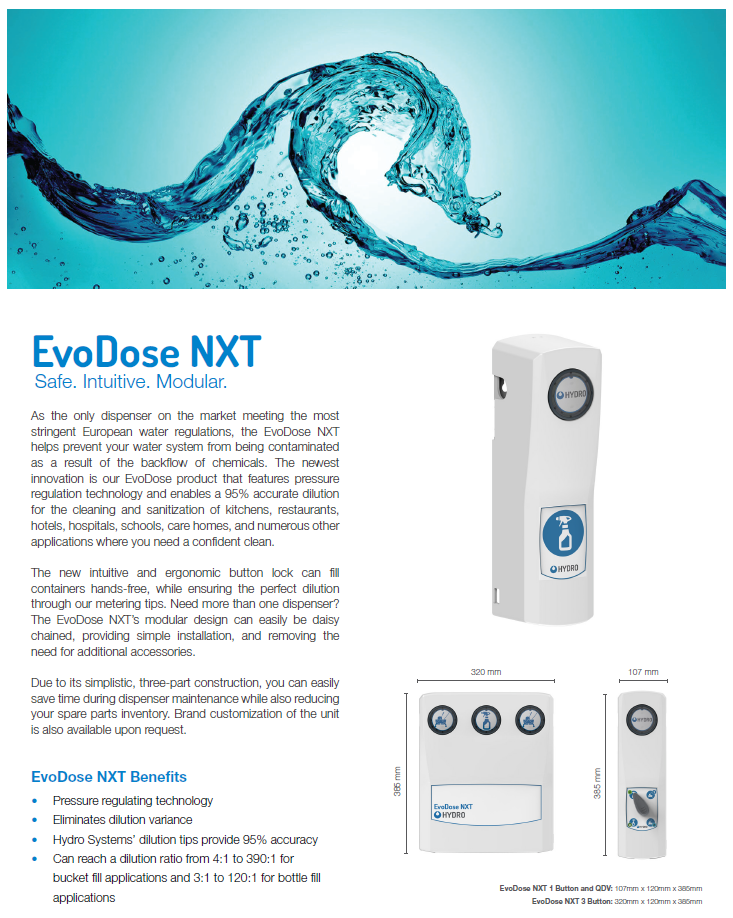

    EvoDose_NXT_Data_Sheet_Thumbnail_EN

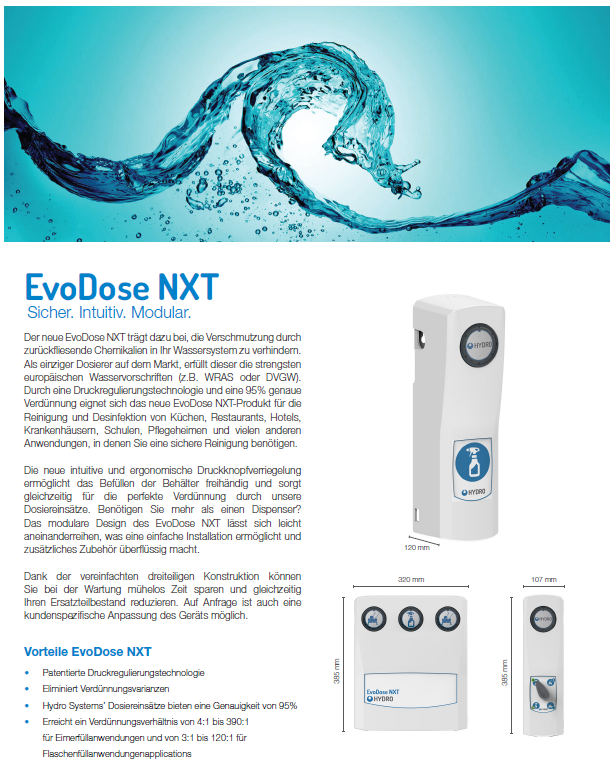

    EvoDose_NXT_Data_Sheet_DE_Thumbnail

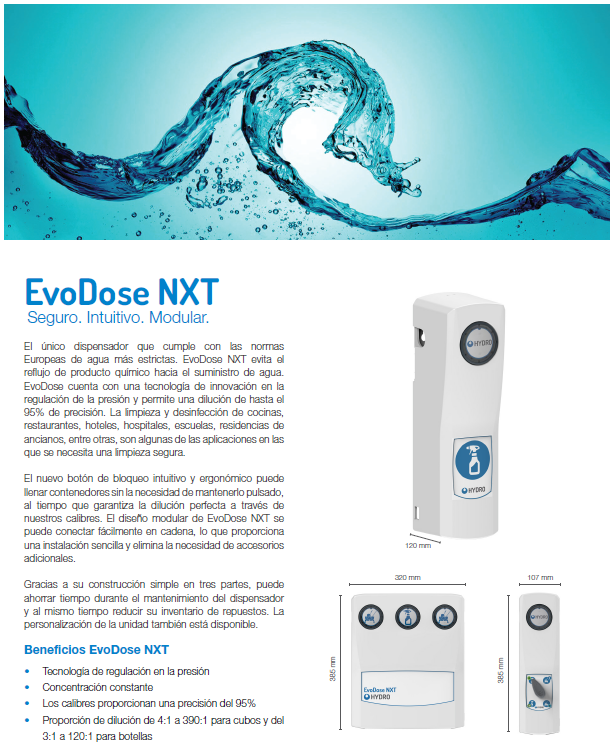

    EvoDose_NXT_Data_Sheet_SP_Thumbnail

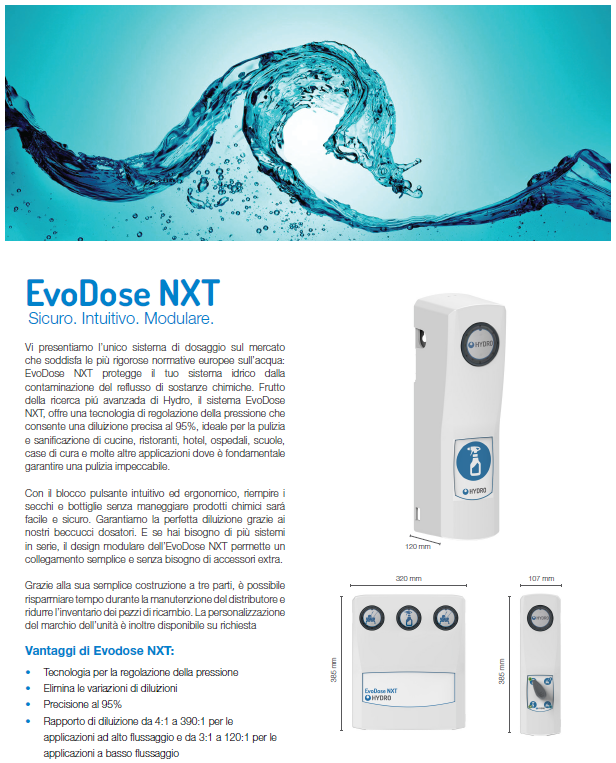

    EvoDose_NXT_Data_Sheet_IT_Thumbnail

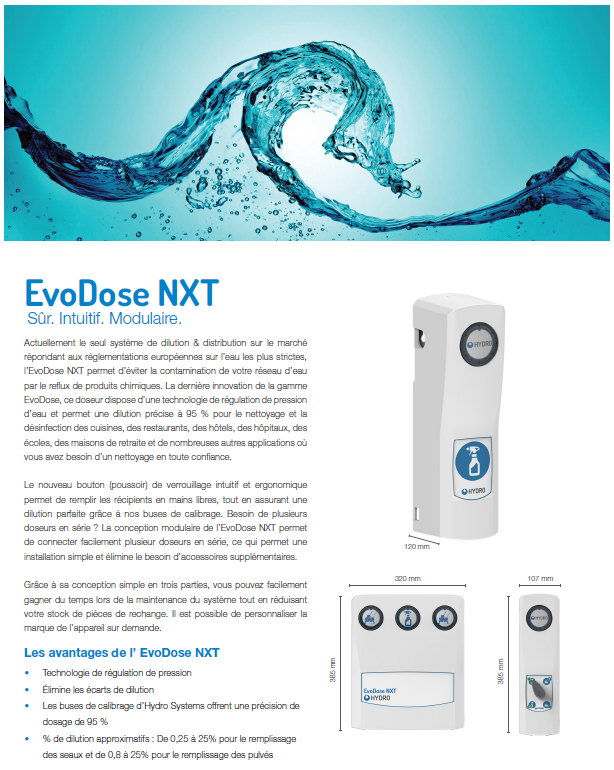

    EvoDose_NXT_Data_Sheet_FR_Thumbnail

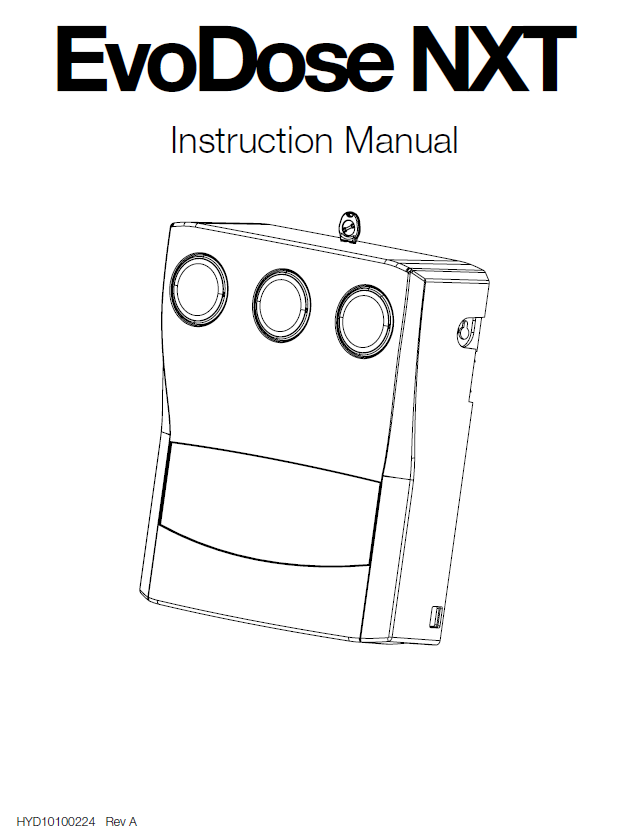

    EvoDose_NXT_User_Manual_3BTN_Thumbnail

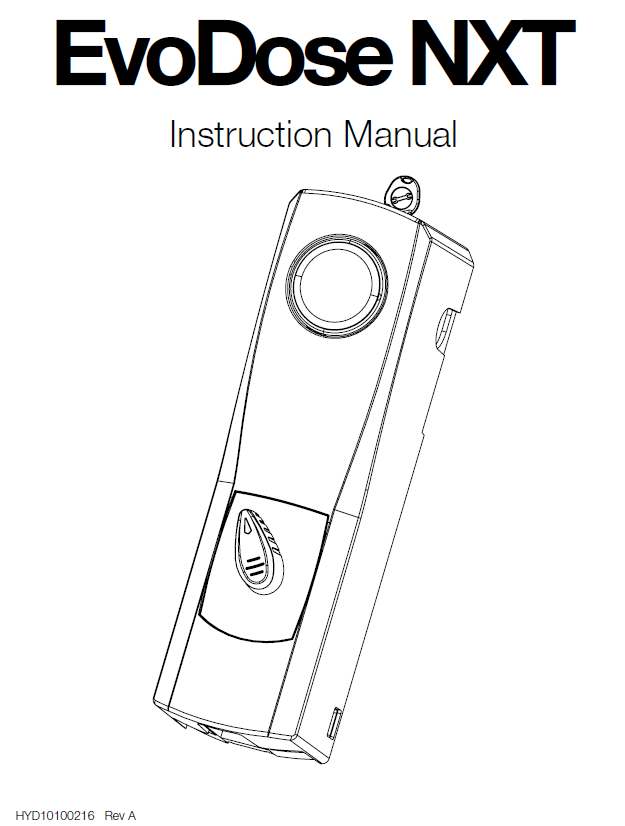

    EvoDose_NXT_User_Manual_1BTN_Thumbnail
    EVODOSE_NXT_1_BTN_HF_LF_INST_SHEET_THUMBNAIL
    Model NumberEductor ConfigurationWater Connection Kit
    HYD-EDN-1H-GSingle Product - 1HFJG15mm, 3/4” MBSP
    HYD-EDN-1L-GSSingle Product - 1LFJG15mm, 3/4” MBSP
    HYD-EDN-3LHH-GSThree Product 1LF x 2HFJG15mm, 3/4” MBSP
    HYD-EDN-3LLH-GSThree Product 2LF x 1HFJG15mm, 3/4” MBSP
    HYD-EDN-3LLL-GSThree Product 3LFJG15mm, 3/4” MBSP
    HYD-EDN-3HHH-GThree Product 3HFJG15mm, 3/4” MBSP
    HYD-EDN-QLLHH-GSQDV - 2HF + 2LFJG15mm, 3/4” MBSP
    HYD-EDN-QLLLH-GSQDV - 3LF + 1HFJG15mm, 3/4” MBSP
    HYD-EDN-QLLLL-GSQDV - 4LFJG15mm, 3/4” MBSP
    HYD-EDN-QHHHH-GQDV - 4HFJG15mm, 3/4” MBSP

    Introducing the EvoDose NXT

    Ready to get started?

    Our experts are here to help. Tell us more about what you need
    so we can connect you to the right Hydro experts.

    I am ready to buy

    I have a product question

    I need technical support

    General Inquiry

    I am ready to buy

    I have a product question

    I need technical support

    General Inquiry

    Common Questions

    Have a different question? Reach Out

    Yes, to be connected to the direct water line, the dispenser needs to be certified. Often, commercially available dispensers on the market do not offer backflow prevention and make non return valves an additional accessory.

    The EvoDose NXT was developed in accordance with the European standard EN1717, which prevents backflow and contamination of water systems. This makes it a safe and reliable solution for diluting chemicals in various industrial and commercial environments.

    EvoDose NXT is delivered with the following standard accessories:

    • Hydro’s metering tips that ensure the perfect dilution
    • A hose & clip to connect multiple EvoDose NXT units
    • A bottle shelf and pick up tube for chemicals

    Yes, the modular design of the EvoDose NXT allows for easy daisy chaining without requiring additional accessories. The JG connections and the hose and clip included with the unit ensure the easy connection.

    Yes, EvoDose NXT’s pressure regulation technology enables a 95% accurate dilution rate, ensuring you can clean with confidence.

    EvoDose NXT can be customized to display your unique brand logo or name.

    The EvoDose NXT can reach a dilution ratio from 4:1 to 390:1 for bucket fill applications and 3:1 to 120:1 for bottle fill applications.
